Product introduction
-
01 Product application

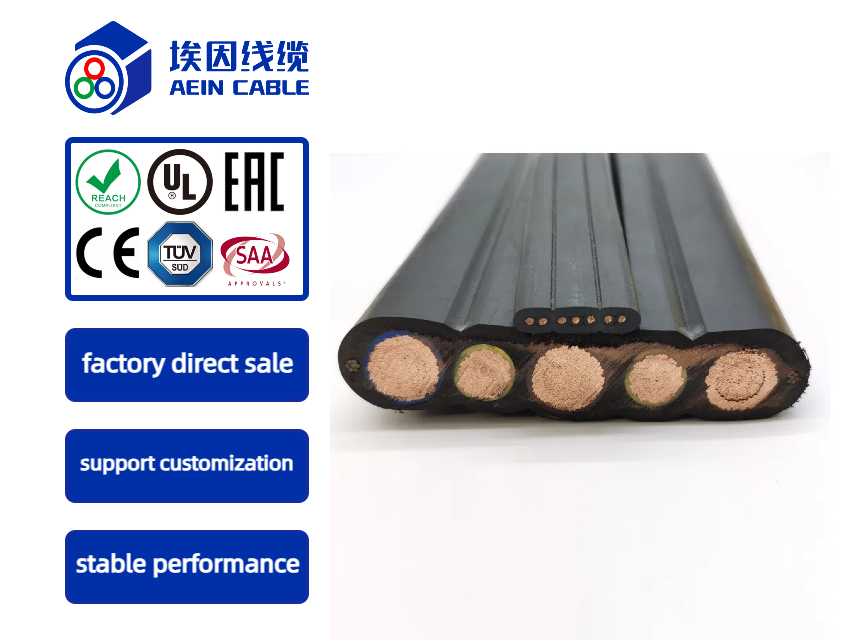

Crane flat cable WVFB used for driving, truck, lifting and other mechanical equipment power, control, lighting, communication and other lines, the use of tensile, tear resistance, oil resistance, wear resistance, tear resistance, resistance to weathering,
softness, bending resistance.
-
02 Product characteristicsOil resistance
Weather fastness
Wear resistance, tensile
resistance, tear resistance
Product structure
Conductor: finely twisted oxygen-free bare copper wire, conforming to VDEO295CLASS 5 or 6
Conductor grade: According to IEC 60228 cl.5 standard
Insulation: weatherproof PVC
Hinge :- Word arrangement 24 core: plum arrangement
Reinforcement (optional): two galvanized soft steel wires (for free hanging over 80 meters) or fiber aramid (optional)
Jacket: High quality nitrile mixture
Jacket color: Black (RAL9005) Grey (RAL7001)
Rated voltage: Uo/U 450/750v
Test voltage: 2500V
Bending radius: mobile installation :10xD(cable diameter); Simultaneous installation :8xD(cable outer diameter)
The temperature rating is fixed :-40℃ to +70℃
Temperature rating shifts :-20 °C to +70°C
Flame retardant class: self-extinguishing and flame retardant, in accordance with IEC 60332-1-2
Standard: similar to EN 50525-3-11
Product identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage
