Product introduction
-
01 Product application
Flexible optical fibre cable for microduct installation by blowing
-
02 Product characteristics
Maximum tension during installation (24- 48 fibres): 750 N
Maximum tension during installation (96 - 192 fibres): 1 000 N
Temperature range during installation: -15 - +60 ºC
Temperature range during operation, storage, transport: -40 - +70 °C
Crush strength with 100 mm plate: 500 N
Reaction to fire (CPR): Fca
Minimum bending radius: During installation 20 x diameter, installed 15 x diameter
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

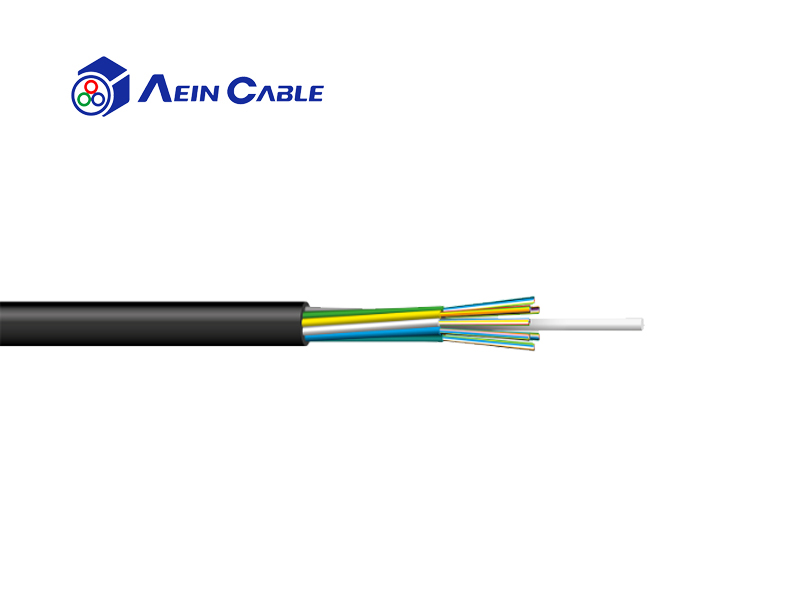

Product structure
Optical fibres: Coloured single-mode fibres according to the ITU-T G.652.D.
Secondary coating: Flexible colour coded fibre modules. Fibres are housed in thin walled tubes made of soft elastomeric material (polyester elastomer).
Fillers: Plastic fillers when applicable.
Central strength member: Glass fibre reinforced plastic (FRP).
Cable core stranding: The fibre tubes and fillers (when needed) are SZ-stranded around the central strength member.
Water blocking: Dry water blocking elements are applied to the cable core.
Rip cord: A non-metallic rip cord is applied under the sheath.
Outer sheath: UV resistant black polyethylene compound (HDPE). Nominal sheath thickness is 0,6 mm.
Sheath marking: Marking printed on the sheath at one meter interval: Nestor Cables - cable type - lot number - year of manufacture - length marking.
All of our fibre optic and copper cables are halogen-free.
