Product introduction
-
01 Product application Flexible single-core cables are specifically designed for mobile applications (such as reels and/or drags).
-
02 Product characteristics Oil-resistant, torsional, moisture-resistant and ozone-resistant
Resistant to ultraviolet rays
Customization is acceptable for products with special structures, other sizes, core wires and sheath colors.
-
03 Technical certification · Comply with ROHS standards
· Comply with the 2014/35/EU standard "Low Voltage Directive" CE.

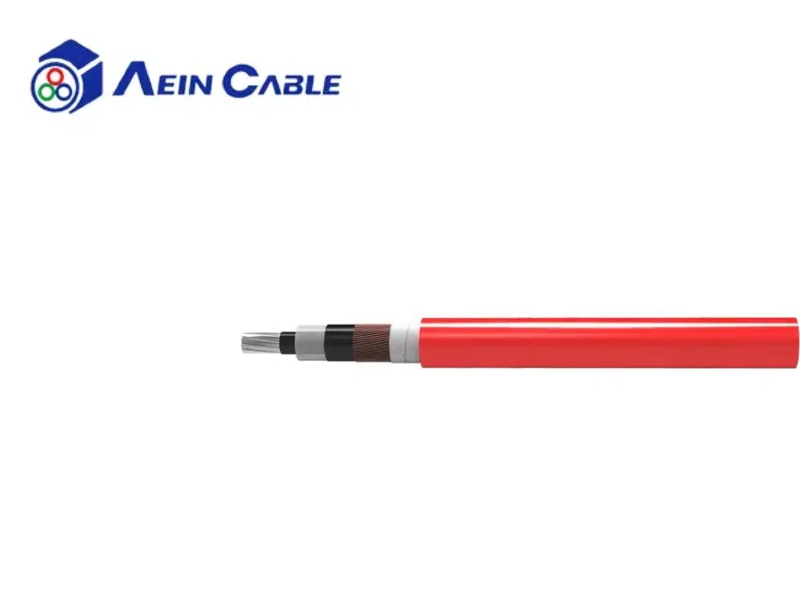

Structural parameter
Conductor material: Soft bare copper wire, grade 5
Conductor type :IEC 60228 standard Class 5 annealed copper conductor
Inner conductor layer: Semiconductive layer.
Core wire insulation: Ethylene propylene rubber
Shielding: braided or wound with copper wire
Outer sheath: Polyurethane
Rated voltage :1.8/3KV to 12/20KV
Conductor resistance: Complies with IEC 60228 standard
Fixed minimum bending radius :6xd
Small bending radius movement :8xd
Maximum tensile load :≤20 N/mm ²
The temperature range is fixed: -40 °C to + 80°C
Temperature range: -30 °C to +80°C
Product Identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE meter mark
