Product introduction
-
01 Product application
Industry, and especially the steel construction , consumes steel in various forms: metal sheets, tubes and so on. Consequently the trade of welding is dominating in this activity.
Electrical supply of moving welding machines. This cable connects the welding equipment to the electrode hoder. It is also recommended for all flexible links working under a low voltage U0/U 100/100V maximum. The flexible conductors and the reinforced
sheath give to the cables H01N2-D a high flexibility.
-
02 Product characteristics
Cable flexibility：Very flexible
Mechanical resistance to impacts：Medium
Chemical resistance：Oil resistant
Flame retardant：EN 60332
Weather resistance：Good
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

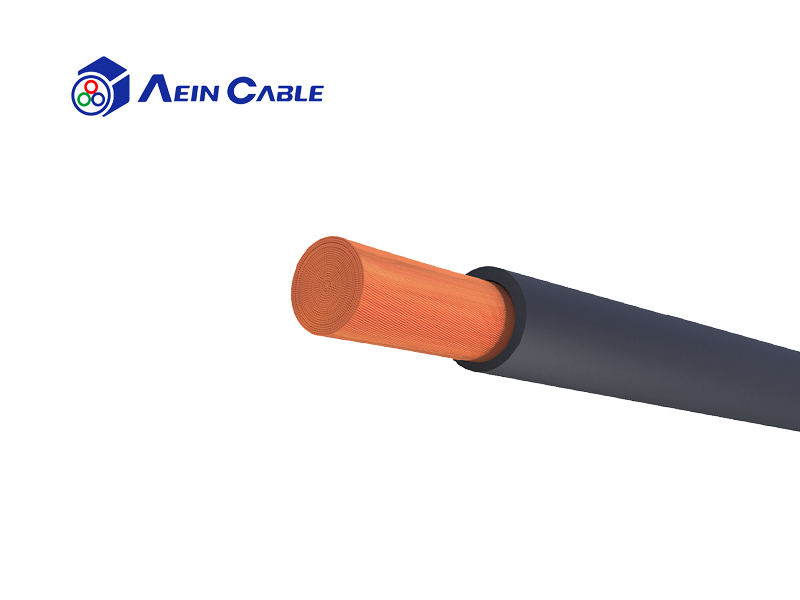

Product structure
Number of cores：1
Conductor flexibility: Extra-flexible class 6
Conductor material: Bare annealed copper stranded
Conductor shape: Circular
Outer sheath：Special crosslinked Elastomer EM5
Protection-Sheath colour：Black
Nominal Voltage：100 V
Rated Voltage Uo/U (Um)：100 V
Max. conductor temperature in service：85 °C
Operating temperature, range：-25 - 60 °C
Short-circuit max. conductor temperature：250 °C
