Product introduction
-

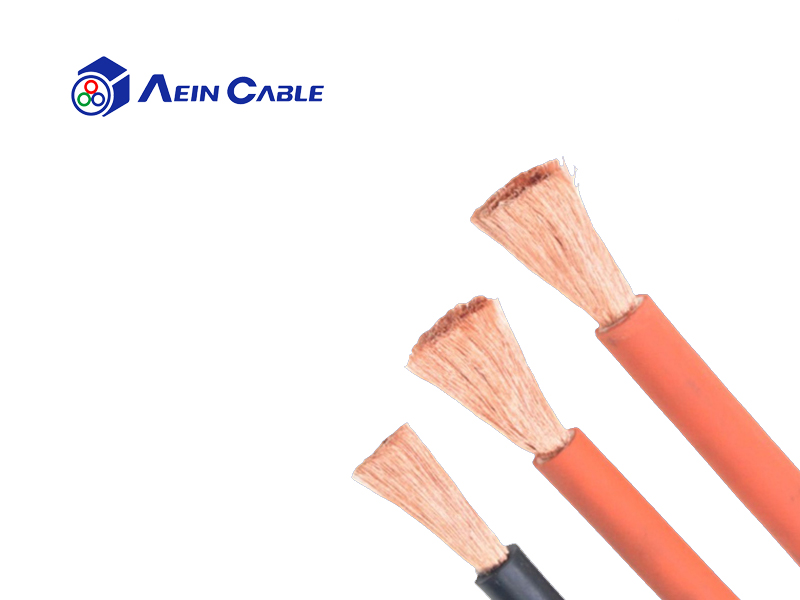

01 Product application Flexible connection cable from welding unit to welding electrode for high mechanical requirements for dry and wet indoor as well as outdoor use. It is also suitable for industrial welding, such as in the automotive industry, shipbuilding, machine tool manufacturing and hand-held welding, such as in facilities or construction sites.
-
02 Product characteristics • Flame retardant in accordance with IEC 60332-1-2
-
03 Technical certification • Conform to RoHS• Conform to 2014/35/EU-Guideline(" Low voltage Directive ")CE
Structural parameter
Conductor material: Bare copper strand or tinned copper strand
Conductor class: In accordance with DIN VDE 0295 6 Class, refer to IEC 60228 6 class
Core insulation:EM5 Type material
Outer sheathing material:EM5 Type material or EI7 Type material
Color of outer sheath:Black
Rated voltage:100/100 V
Test voltage:1 kV
Min. bending radius fixed:D = 12 x d; E = 10 x d
Min. bending radius moved:D = 12 x d; E = 10 x d
Operat. temp. fixed min/max: -40 °C / +90 °C
Operat. temp. moved min/max:-30 °C / +90 °C
Burning behavior:IEC 60332-1-1 and IEC 60332-1-2
Standard:Conform to EN50525-2-81
Product identification Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
Product parameter
