Product introduction
-
01 Product application H05BQ-F Be used for Harmonizing, halogen-free connecting cables in electrical installations and hand-held power tools for fixed and mobile installation, no defined cable path, no tensile stress. Suitable for use in dry, wet or wet rooms. In the temperature range of outdoor use, not underground laying.
-
02 Product characteristics • Increase resistance to acids, bases, dissolving agents, hydrolytic agents, lubricants, etc.
• Improved resistance to wear and microorganisms
• UV-resistant PUR Outer sheath
• Halogen-free
-
03 Technical certification • Conform to RoHs standard• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

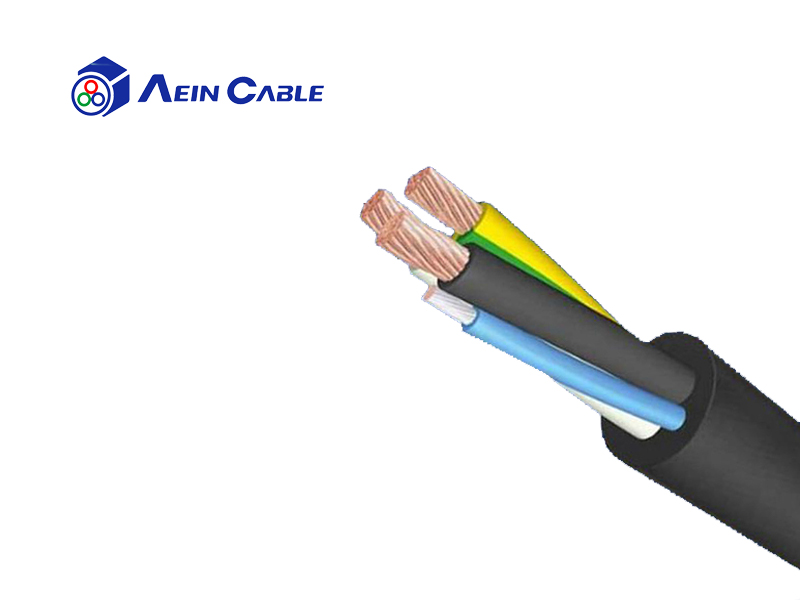

Product structure
Conductor material: bare copper stranded wire
Conductor class: in accordance with IEC 60228 cl. 5 standard
Insulation: rubber compound
Identification of core wire:5 Core below: in accordance with DIN VDE 0293-308 Standard; from 3 Above core band GNYE
Stranding: Stranded in layers
Outer sheath:PUR
Jacket color: Orange (optional)
Rated voltage:Uo/U: 300/500 V
Test voltage:2KV
Conductor resistance:Conform to IEC 60228 cl. 5 standard
Insulation resistance:minimum 20 MΩ x km
Min. bending radius fixed: 4 x d
Min. bending radius moved:12.5 x d
Operat. temp. fixed min/max: -50 °C / +80 °C
Operat. temp. moved min/max:-40 °C / +80 °C
Halogen-free:Conform to IEC 60754-1and IEC 60754-2 standard
Standard:Conform to HD22.10.S1, DIN VDE 0282 T10 standard
Product identification Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE
Product parameter
