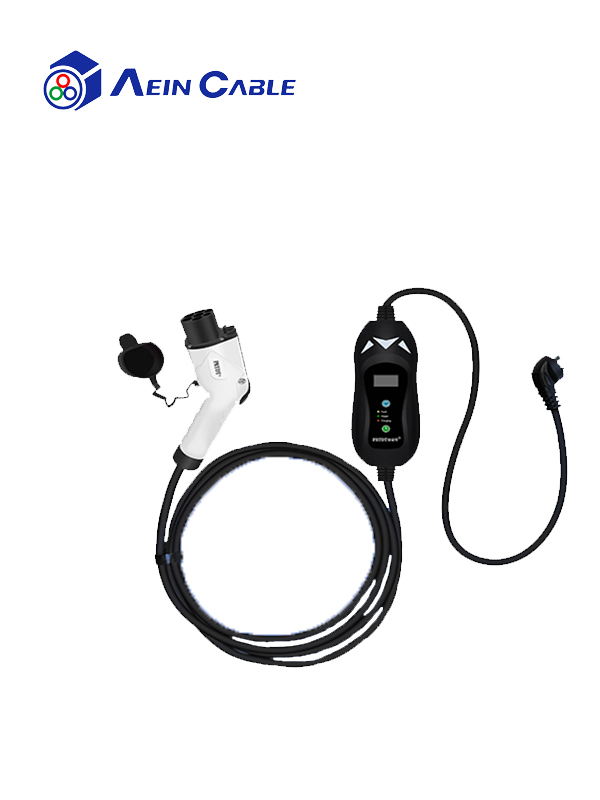

H05BZ5-F H07BZ5-F AC EV Charger Charging Pile Cable

H05BZ5-F H07BZ5-F AC EV Charger Charging Pile Cable

H05BZ5-F H07BZ5-F AC EV Charger Charging Pile Cable

It is suitable for connecting electric vehicle charging device and charging infrastructure, so as to carry out power transmission for electric vehicles, and is equipped with a certain number of signal lines, control lines, power auxiliary lines, etc., to ensure accurate control and safe operation in the whole charging process.
inquiry
  • Product details
Product introduction
  • 01 Product application It is suitable for connecting electric vehicle charging device and charging infrastructure, so as to carry out power transmission for electric vehicles, and is equipped with a certain number of signal lines, control lines, power auxiliary lines, etc., to ensure accurate control and safe operation in the whole charging process. Charging cables are generally used in charging stations, parking lots, hotels, communities, garages and other areas. Portable charging cables can be placed in the car.
  • 02 Product characteristics •UV, Ozone resistant and weather resistant acc. to EN 50396 and EN50620
    •Resistance to coolant, microorganism, weak acid and base
    •Oil resistant, acc. to IEC 60811-2-1
  • 03 Technical certification •Conform to RoHS standard
    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
    • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Structural specification

Conductor material: bare copper wire

Conductor class: acc. to IEC 60228  cl. 5 pt. 4

Core insulation: EV1-2 Type B halogen-free mixture

Core identification: brown, blue, black, gray, yellow green

Core identification: BK, number 1,2

Stranding: stranded in layers and back twisted

Outer sheath: EVM-1 Type B halogen-free mixture

Sheath color: black (RAL9005); orange (RAL 2004)

Rated voltage: 300/500V, 450/750V

Testing voltage: 2000V, 2500V

Minimum bending radius Fixed: 6 x d

Minimum bending radius Moved:10x d < 10 mm

Operating temperature Fixed :-40℃/ +80℃

Operating temperature Moved: -30℃ / +80℃


Burning behavior: Flame retardant acc. to IEC60332-1-2


Low temperature shock: -40 lD, crack-free Equivalent report

Thermal shock: 150*0/1 hcrack-free

Oil resistance: IRM902,100t*168h Change in tensile strength < ±40%

Elongation change: < ± 30%

Acid and alkali resistance: 168h, Variation in tensile strength 30%; elongation 100%

Product identification: Aein bei ke ® SHANGHAI  AEIN  WIRE ＆ CABLE  CO.,LTD   Model number  specification voltage   CE Meter mark  As per certification requirements

Product parameter
Click to download the product documentation
Keywords: EV AC charging pile cable charging pile cable manufacturer
