Product introduction
-
01 Product application

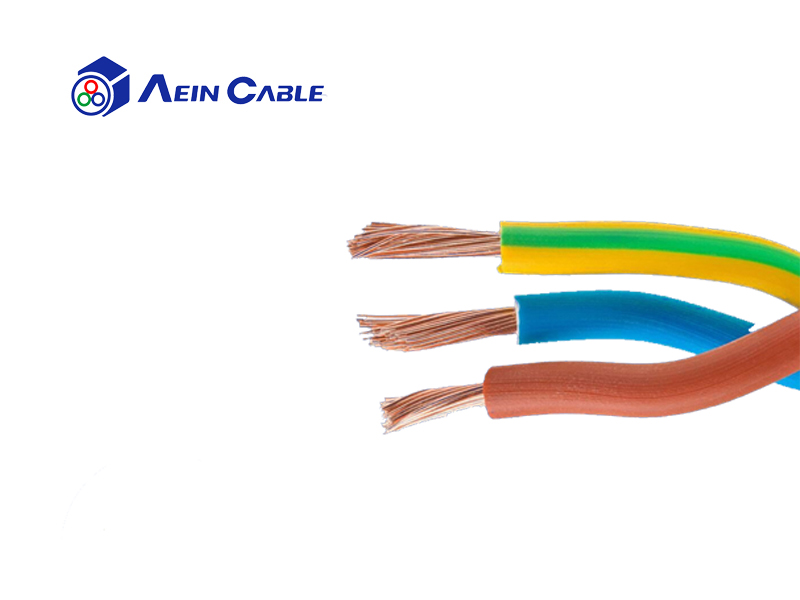

H05V-K and H07V-K as single core for internal wiring of devices as well as protected laying within and on shiners. Laying within pipes on-wall and in-wall permitted for signal facilities.
-
02 Product characteristics • L
argely resistant to acids, bases and specified types of oil
• Self-extinguishing and flame-retardant
• No direct laying on pallets, in channels or trays (exceptional as potential compensation)
• All usual standard colours available
-
03 Technical certification
• Conform to RoHS
• Conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
•
We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.
Product structure
Conductor material: copper stranded wire
Conductor class: acc. to IEC 60228 class 5
Core insulation: PVC
Core identification: different colors
Rated voltage: H05V-K: 300/500V; H07V-K: 450/750 V
Testing voltage: H05V-K: 2 kV; H07V-K: 2,5 kV
Conductor resistance: +20 °C acc. to IEC 60228
Minimum bending radius fixed:10x d
Minimum bending radius moved:15x d
Operat. temp. fixed min/max: -15°C/80°C
Operat. temp. moved min/max: -5°C/80°C
Burning behavior:self-extinguishing & flame-retardant acc.to IEC
Standard: EN50525-2-31 (IEC 60227-3)
Product identification: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE
Product parameter
