Product introduction
-
01 Product application
As switching halogen-free strand for wiring telecommunication units, electrical modules in devices as well as telecommunication facilities. As single core for internal wiring of devices as well as protected laying within and on shiners. Laying within pipes on-wall and in-wall permitted for signal facilities. CE certified, halogen-free, environmentally friendly
-
02 Product characteristics • Resistant to acids, bases and oils
• Halogen-free, flame retardant
• No direct laying on pallets, in channels or trays (exceptional as potential compensation)
• All the usual standard colors are available.
-
03 Technical certification
•C onform to 2014/35/EU-Guideline (''Low voltage Directive'') CE •We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.

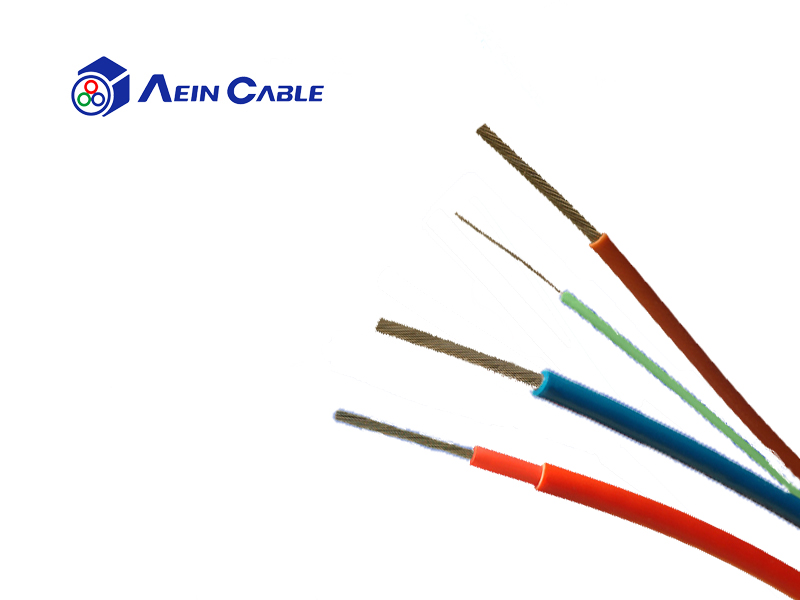

Product structure
Conductor material: copper stranded wire
Conductor class: acc. to IEC 60228 1 class
Core insulation: EI5B thermoplastic mixture
Core identification: different colors
Rated voltage: H05Z-U: 300/500V; H07Z-U: 450/750 V
Testing voltage: H05Z-U: 2kV; H07Z-U: 2.5kV;
Conductor resistance: +20 °C Conform to IEC 60228
Minimum bending radius fixed: 4x d
Minimum bending radius moved: 15x d
Operating temperature fixed: -30°C/90°C
Halogenicity: acc. to IEC 60754
Smoke density: acc. to IEC 61034
Burning behavior: acc. to IEC 60332-1-2 Self-extinguishing and flame retardant
Standard: acc. to EN 50525-3-41
Product identification: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE
Product parameter
