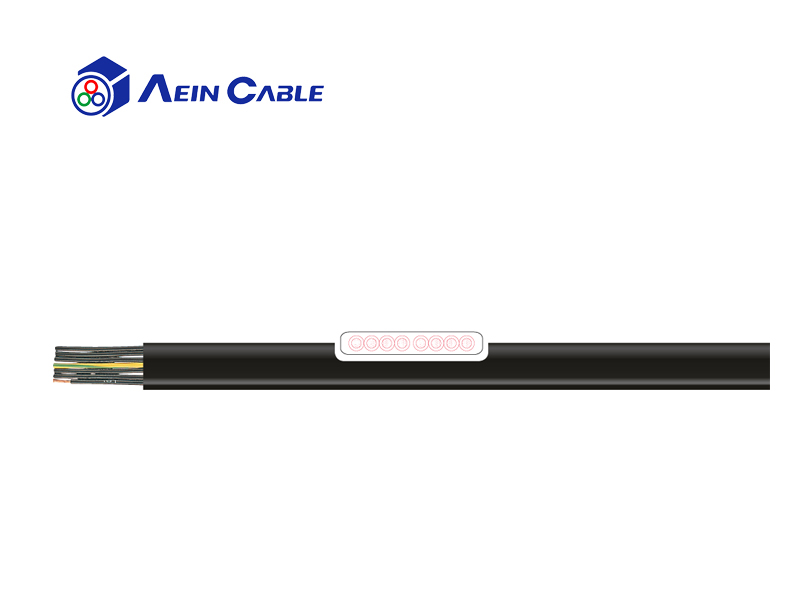

H07VVH6-F Flat Cable With EU CE Certification

Power and control cables for trolley systems, transmission lines, machinery, especially cranes, lifts, cranes and container Bridges. It is also suitable for applications where the cable is strongly bent in a horizontal permanent movement operation. Suitable for dry, wet, wet room.

inquiry

Product details

Product introduction

01 Product application Power and control cables for trolley systems, transmission lines, machinery, especially cranes, lifts, cranes and container Bridges. It is also suitable for applications where the cable is strongly bent in a horizontal permanent movement operation. Suitable for dry, wet, wet room.
02 Product characteristics
Compared with circular cables, the bending radius is significantly smaller
03 Technical certification • Conform to RoHs standard• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material: bare copper stranded wire

Conductor class: In accordance with DIN VDE 0295 5 class IEC 60228 5class

Insulation:PVC

Identification of core wire: Conform to VDE 0293-308 At most 5A wire is painted with color from 6 Black wires with white digits root to maximum 6 Wire, white, black numbers, with or without GNYE

Stranded: cores resp. bundles parallel side by side

Outer sheath: Special PVC

Jacket color: Black RAL9005;

Rated voltage:Uo/U 450/750 V

Test voltage:2.5KV

Conductor resistance: In accordance with IEC 60228 cl. 5 standard

Insulation resistance: minimum 200 MΩ x km

Capacitor: core/core about120 nF/km;

Min. bending radius fixed: In accordance with DIN VDE 0298 The first 3 Part.

Min. bending radius moved: In accordance with DIN VDE 0298 The first3Part.

Operat. temp. fixed min/max：-15°C/+70°C.

Operat. temp. moved min/max：-5°C/+60°C.

Burning behavior: self-extinguishing Flame retardant, conforming IEC 60332-1standard

Standard:Conform to DIN EN 50214

Product identification: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE

Product parameter

Click to download the product documentation

Keywords: H07VVH6-F EU CE Certified cable flat cable
