Product introduction
-
01 Product application
Used for wiring and connection of solar power stations or facilities and equipment.
-
02 Product characteristics
· Resistant to acids, alkalis and ozone· Resistant to mineral oil
· Low smoke, halogen-free and flame retardant
-
03 Technical certification· Comply with RoHs standards, 62930 IEC 131
·DIN EN 60228, Class 5 standards
·Customization is acceptable for products with special structures, other sizes, core wires and sheath colors

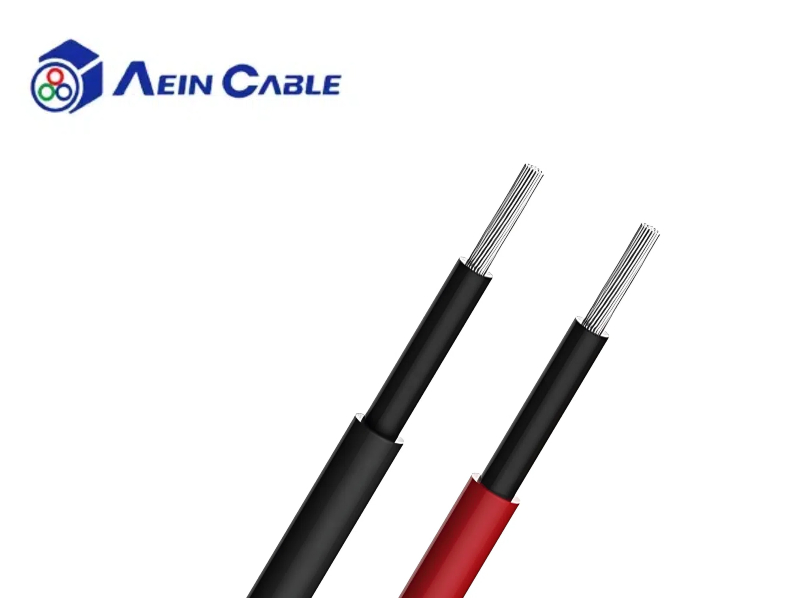

Product structure
Conductor materials: Pure copper wire, tin-plated copper stranded wire
Conductor grade: Complies with IEC 60228 cl.5 standard
Insulation :XLPO core wire insulation
Core wire identification :DIN VDE 0293 Part 308 standard
Outer sheath :XLPO
Sheath color: Black RAL9005(optional)
Rated voltage :DC 1500V
Test voltage :4000V
Minimum fixed bending radius :15 xd
Fixed minimum/maximum operating temperature :-40°C/+125°C(with sufficient ventilation)
Halogen-free: Complies with IEC 60754-1
Corrosiveness: Complies with IEC 60754-2
Flame retardant grade: Self-extinguishing and flame retardant comply with EN 60332-1-2
Product Identification: Aein beike SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage: CE
