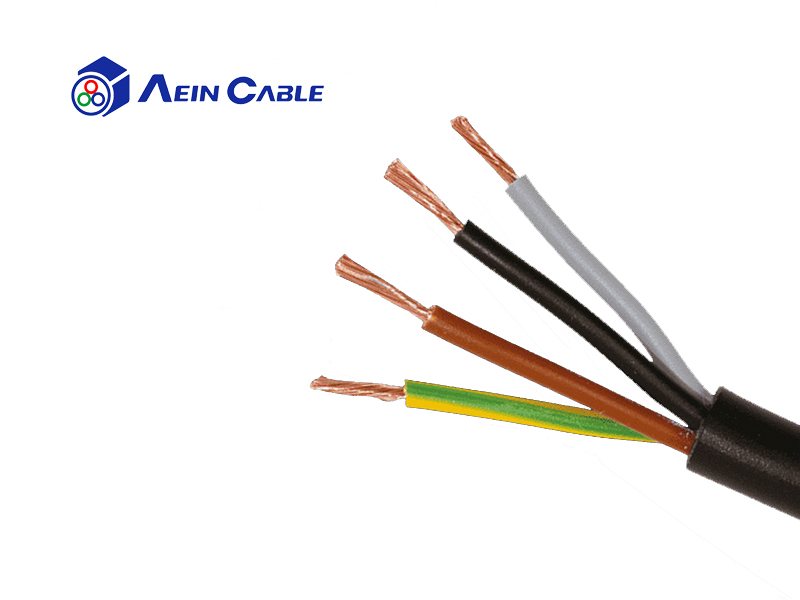

60245 IEC 53 H05RR-F CB Certified Rubber Sheathed Cord Cable

60245 IEC 53 H05RR-F CB Certified Rubber Sheathed Cord Cable

60245 IEC 53 H05RR-F CB Certified Rubber Sheathed Cord Cable

H05RR-F CB Certified rubber cable, light rubber sheathed cable for light and medium mechanical requirements. Used to connect handheld electrical equipment in the home and office. Suitable for dry, wet and wet indoor.

inquiry
  • Product details
Product introduction
  • 01 Product application Light rubber sheathed cable for light and medium mechanical requirements. Used to connect handheld electrical equipment in the home and office. Suitable for dry, wet and wet indoor.
  • 02 Product characteristics • Flame retardant：in accordance with IEC 60332-1-2 • Oil resistance：in accordance with EN 60811-404
  • 03 Technical certification • Conform to RoHs standard • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

Conductor material: bare copper stranded wire

Insulation: EI4 Type Rubber compound

Core identification: optional

Stranding: Twisted together / Laid parallel

Outer sheath: Rubber compound of type SE

Jacket color: Black

Rated voltage:Uo/U: 300/500 V

Test voltage:2KV

Min. bending radius:

Operat. temp. min/max: -40 °C / +90 °C

Burning behavior: Self-extinguishing and flame retardant IEC 60332-1 standard: 60245 IEC 53

Product identification    Aein bei ke   SHANGHAI  AEIN  WIRE ＆ CABLE  CO.,LTD   Model number  specification voltage

Product parameter
Click to download the product documentation
Keywords: CB certification cable European standard cable
