Product introduction
-
01 Product application
This halogen-free, flame-retardant cable with static shielding is made for stationary use for telephone, data and signal transmission in subscriber stations and private branch exchange construction for telephone systems, For fixed installation on and
under plaster, in dry and damp rooms
-
02 Product characteristics
·Reinforced outer sheath
·High resistance to acids, alkalis and common oils
·Rugged version with reinforced outer sheath
-
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

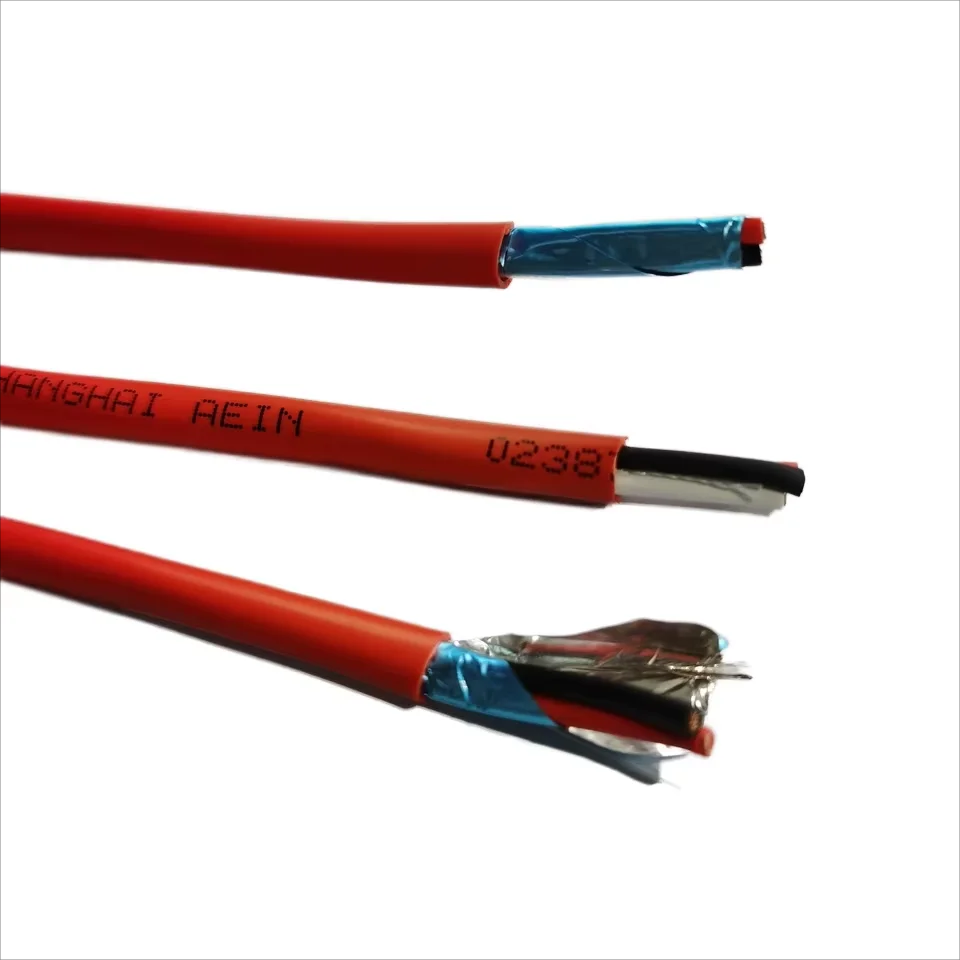

Product structure
CONDUCTOR :Bare copper standard
INSULATION : Halogen-free compound
CORE IDENTIFICATION: Optional
TWISTING: Stranded in pairs, cores stranded in layers
SHIELDING: Tinned copper wire braided shield, coverage approx. 80 %
OUTER SHEATH: Halogen-free flame-retardant polymer
SHEATH COLOR: RAL 7001, fire alarm cable (red)
RATED VOLTAGE : Uo/U: 300V/500V
TEST VOLTAGE: Uo/U:1500V
MINIMUM BENDING RADIUS FIXED: 7.5 x d
Operat. temp. fixed min/max: -30°C/+70°C
Operat. temp. moved min/max: -5°C/+50°C
Burning behavior: Self-extinguishing and flame retardant, in accordance with IEC 60332-1-2
Product identification:Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
