J-Y(ST)Y Indoor Cable

Connection cable for use in electronics and in measurement, control and signal applications. In news and communication applications, the following connections can be installed: telephone, telefax, telex, standard modems for postal services; burglar and fire alarm systems (fire alarm cables); communication and paging systems; access control, time and data control systems. Can be used in dry and wet interiors for fixed installation on and under plaster.

inquiry

Product details

Product introduction

01 Product application

Connection cable for use in electronics and in measurement, control and signal applications. In news and communication applications, the following connections can be installed: telephone, telefax, telex, standard modems for postal services; burglar and fire alarm systems (fire alarm cables); communication and paging systems; access control, time and data control systems. Can be used in dry and wet interiors for fixed installation on and under plaster.
02 Product characteristics

Minimum bending radius:Fixed installation: 10 x outer diameter

Test voltage:Core/core: 800 V

Core/screen: 800 V

Loop resistance:0.6 mm: max. 130 ohm/km 0.8 mm: max. 73.2 ohm/km

Temperature range:Occasional flexing: -5°C to +50°C Fixed installation: -30°C to +70°C
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

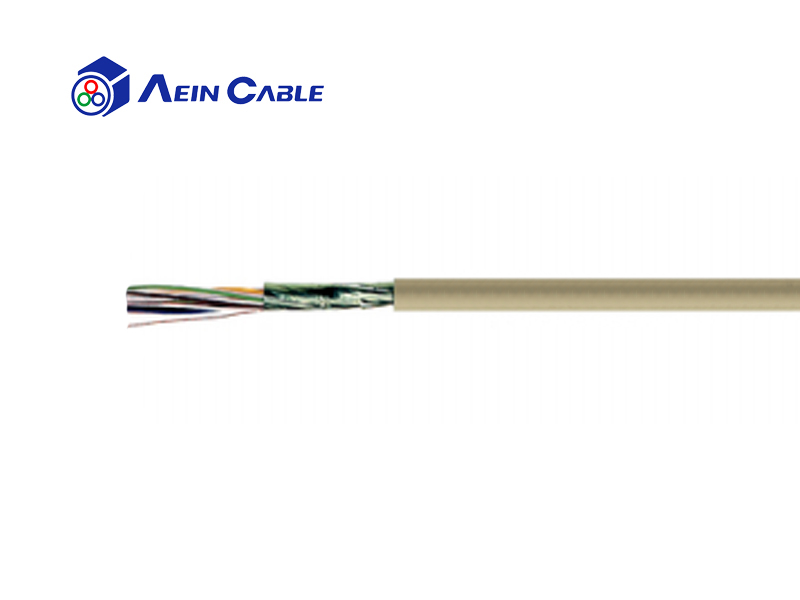

Product structure

Core insulation made of PVC

Cores twisted in pairs,

pairs twisted together,

foil wrapping over cable core,

static screen made of aluminium-laminated plastic film with copper drain wire

Outer sheath made of PVC

Outer sheath colour: grey
