Product introduction
-

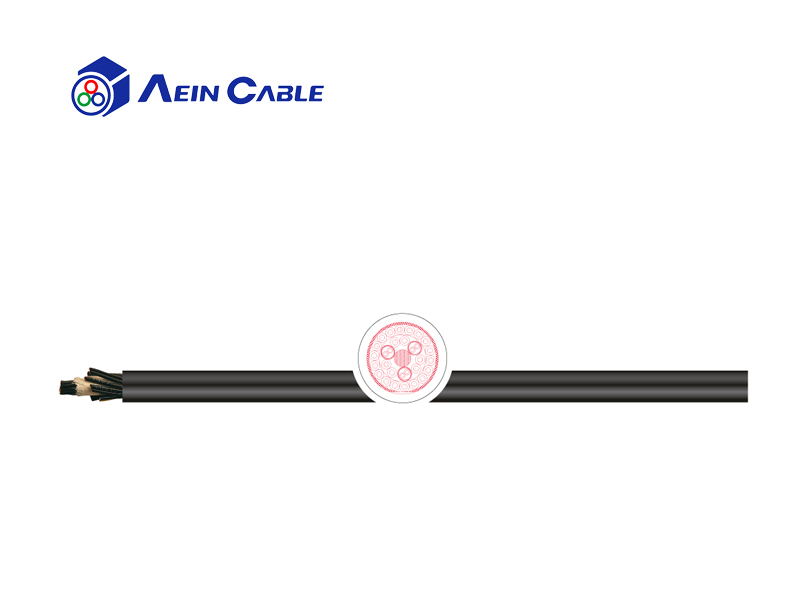

01 Product applicationK9YSTCU11Y halogen-free lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.
-
02 Product characteristics ·Reinforced outer sheath·High resistance to acids, alkalis and common oils ·Rugged version with reinforced outer sheath
-
03 Technical certification •Conform to RoHS standard
•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor material: Bare copper wire
Insulation: Special thermoplastic compound
Core Identification: Optional
Stranding: Stranded in pairs, cores stranded in layers
Shield: Tinned copper wire braided shield, coverage approx. 80 %
Outer sheath:PUR
Jacket color: BLACK RAL 9005 (Optional)
Rated voltage: Uo/U: 300V/500V
Test voltage: Uo/U:1500V
Minimum bending radius fixd 7.5 x d
Operat. temp. fixed min/max:-30 °C / +70 °C
Operat. temp. fixed min/max:-5 °C / +70 °C
Flame retardant class Flame retardant class compliance. IEC 60332-1-2
Product identification:Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
