Product introduction
-
01 Product application
Fixed installation cable for signal and communication.
-
02 Product characteristics
FLAME RETARDATION : IEC 60332 /1, IEC 60332
HALOGEN CONTENT : IEC 60331 / 1-2
WORKING TEMPERATURE : -40°C / + 90°C
MIN. BENDING RADIUS (FIXED) : 10 x(overall diameter)
RATED VOLTAGE : 250/355V
TEST VOLTAGE : 2 kV
INSULATION : Halogen free, cross-linked polyethylen compound.
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

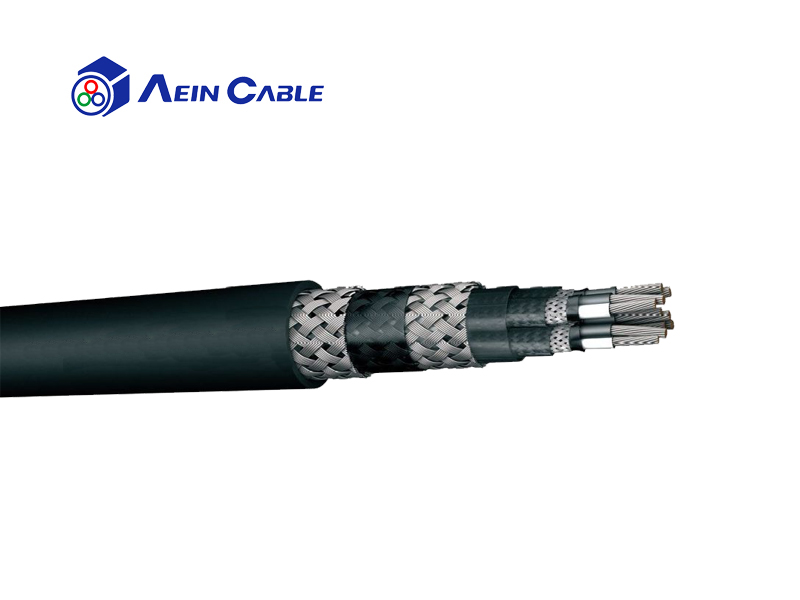

Product structure
CONDUCTOR : Electrolytic, stranded, tinned copper wire
LAYUP : Cores laid up in pair, pairs laid up concentrically.
SEPARATOR : Separating foil over pairs/triples.
INDIVIDUAL SCREEN : Screening from over wires over twisted pairs/triples ( 90% coverage ).
SEPARATOR : Separating foil over individual screen.
SEPARATOR : Separating foil over cores.
OVERALL SCREEN (1) : Electrolytic, tinned copper braided screen ( 90% coverage ).
SEPARATOR : Separating foil overall screen1
OVERALL SCREEN (2) : Electrolytic, tinned copper braided screen ( 90% coverage ).
OUTER SHEATH : Halogen free, cross-linked polyolefin compound. Mud resistant on request.
