Product introduction
-
01 Product application

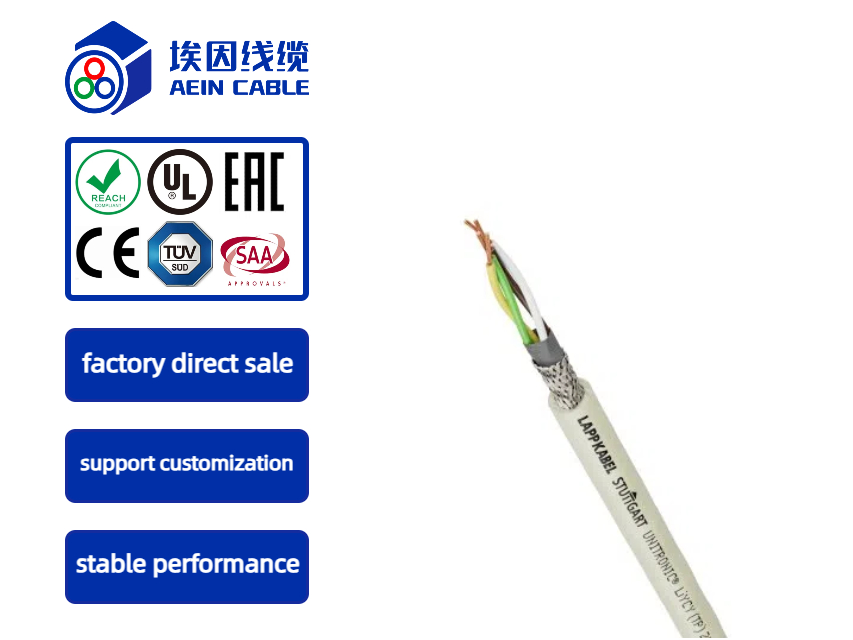

LiYC11Y-TP PUR is used in industrial applications and as a key point for signal transmission in factories. They are used in electronic control systems, communications fields, electronic circuits, measuring equipment, machine design, office equipment computer
systems that require friction resistance, impact resistance and mechanical constraints on edges. They can be used in wet or dry environments and are highly resistant to oil and petroleum derivatives, with shielding shielding the cable from external electrical
influences.
-
02 Product characteristics
· UV resistance
· Flame retardant accord with FT2
-
Technical certification03
· Comply with RoHS· EAC certification cable
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing
Product structure
Conductor material: stranded electrolytic annealed copper, grade 5
Core wire insulation :PVC
Core wire identification :<20AWG:5 core and below using color separation, IN line with n.DIN 47100, more than 5 core multi-core cables using core wire color separation, white ink dot distinction; ≥20AWG:5 core and below using color separation, including
yellow/green line, in line with n. DIN 47100, more than 5 core multi-core cable using black core wire, white ink numbered distinction (if there are special requirements on demand)
Stranding: two cores twisted into a pair; Layering of pairs
Shielding: tinned copper wire braid, coverage rate 70%
Outer sheath :TPU
Outer jacket color: gray RAL7001
Rated voltage :300/500V
Test voltage :2500V
Small bending radius fixed :7.5 x d
Small bending radius movement :15 x d
Operating temperature fixed minimum/maximum value :-40°C/+80°C
Temperature class Shift Small/large value :-5°C/+70°C:
Flame retardant grade: self-extinguishing and flame retardant meet; CSA C22.2 No.2556-15 FT2
Oil resistance: UL1581:IRM 902; In accordance with DIN EN 60811-2-1
