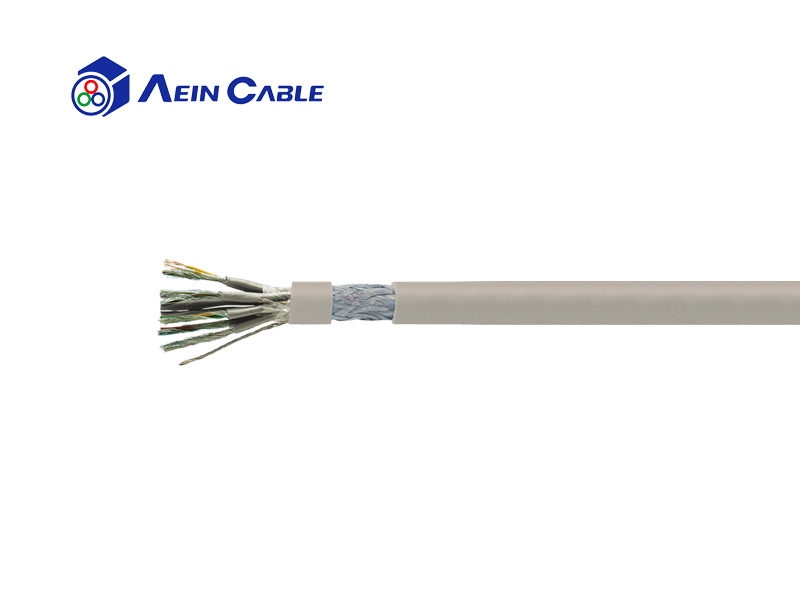

LiYDY-CY TP PVC Data Cable

PVC data cable, twisted pairs with pair-wise and overall copper screen LiYDY-CY TP is a paired PVC data cable with pair-wise and overall copper screen. Applications are in measuring, control, and voice signals, e.g. in scales and low-voltage switchboard plant engineering,for interference-prone operation controls, in control and measuring technologies, and in high-sensitive data-processing systems.

inquiry

Product details

Product introduction

01 Product application

PVC data cable, twisted pairs with pair-wise and overall copper screen LiYDY-CY TP is a paired PVC data cable with pair-wise and overall copper screen. Applications are in measuring, control, and voice signals, e.g. in scales and low-voltage switchboard plant engineering,for interference-prone operation controls, in control and measuring technologies, and in high-sensitive data-processing systems.
02 Product characteristics

Fire performance

flame retardant and self-extinguishing

Oil resistance

Chem. resistance

Absence of harmful substances

good EMV

flexible
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor: bare coppers

Insulation: PVC

Stranding : 2 cores twisted to pairs

Screen: wrapped pair-wise with tinned copper wires

Sheath: pair-wise PVC

Stranding : pairs in concentric layers

Wrapping : PETP foil

Screen: tinned copper braiding with a tinned copper drain wire (equal to conductor section)

Sheath material: PVC

Sheath colour: grey

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance: 8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Keywords: European CE certification
