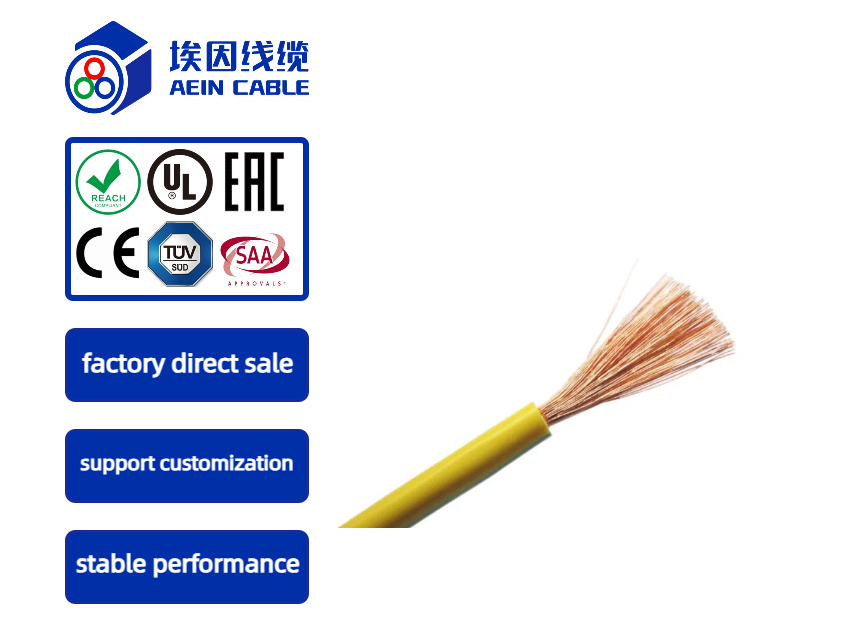

Product introduction
-
01 Product applicationAs the core cable, it is used for internal wiring of equipment and protection installation in and on lamps. Signalling facilities are allowed to be laid in pipes inside and outside walls.
-
02 Product characteristics •Self-extinguishing and flame retardant•Shall not be used for laying directly on the platform or channel (except for equal potential connection)
•All common standard colors are available
-
03 Technical certification •Conform to RoHS standard
•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Structural specification
Conductor material: Copper stranded wire
Conductor type: According to IEC 60228 Class 5
Core wire insulation :PVC
Core wire identification: different colors
Rated voltage :0.14 mm² 500 V/0.25-1.50 mm² 900 V
Test voltage :0.14 mm² 1200 V/0.25-1.50 mm² 2500 V
Conductor resistance :+20°C according to IEC 60228
Dynamic bending radius: 12.5 x Ø
Static bending radius: 12.5 x Ø
Operating temperature :-5°C~ +70°C
Static temperature: -30°C~ +80°C(temperature 105°C for LiYv-t)
Flame retardant class: Flame retardant: VDE 0472 804,IEC 60332.1
Standard :EN 50525-2-31(IEC 60227-3)
Product ID :Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE
Product parameter
