Product introduction
-
01 Product application
These shielded cables are used in dry, damp and wet locations. Protected in direct sunlight and fixed outdoor installations. In the machine and automation industry, where process data operations and measurements are used as control and signal
cables. As strong and flexible cables in systems where no high mechanical tensile forces and indispensable movements are present. And the shields, which are made of tinned copper wires, protect against external impulses and ensure trouble-free
transmission and signal transmission. As strong and flexible cables in systems where no high mechanical tensile forces and indispensable movements are present.
-
02 Product characteristics
Flame Retardant
Temperature Range Fixed: - 30 ℃~ + 70 ℃
Mobile: - 5 ℃ ~ + 70 ℃
Bending Radius Fixed: 4 x D
Mobile : 12,5 x D
Test Voltage:2000 V
Rated Voltage Uo/U 300/300 V
Insulation Resistance MΩxKm Min. 20
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

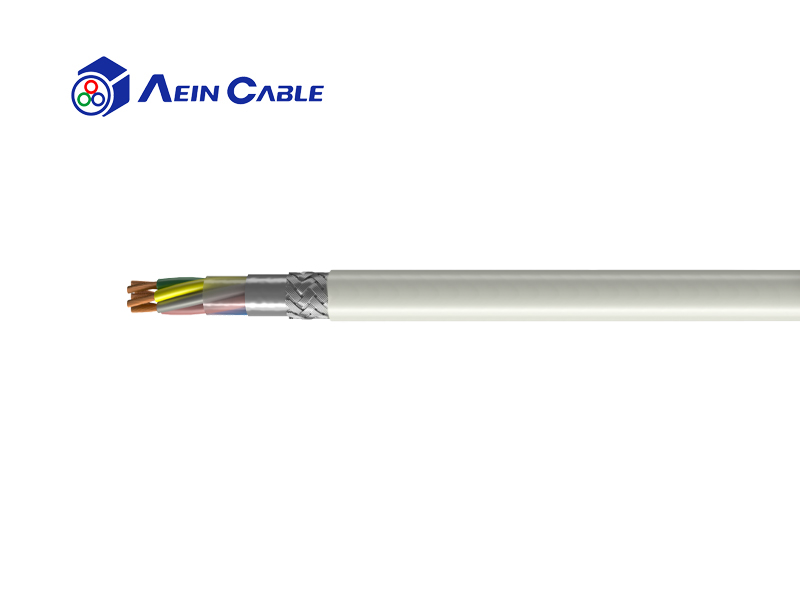

Product structure
Conductor : Electrolytic Solid, Copper Wire
Insulation : PVC Compound
Stranding : Two conductors twisted to a pair
Separator : PES Tape
Lay-up : Pairs laid up in layers of optimum pitch
Screen : Braid of tinned Cu wires, 85% coverage
Outer Sheath : PVC compound
Outer Sheath Colour : Grey
