Product introduction
-
01 Product application
This cable is used for the connection of electrical equipment and can be used for mining under extremely high mechanical loads and underground excavation in dangerous environments, such as high-voltage transformers on underground mining and tunnel transmission
lines.
-
02 Product characteristics
. Flame retardant in accordance with EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2 . Oil
resistant .UV
resistant . Abrasion and tear resistance, oil resistance, and royal oxygen resistance
-
03 Technical certification • Conform to RoHS •Complies with 2014/35/EU-Directive ("Low Voltage Directive") CE.

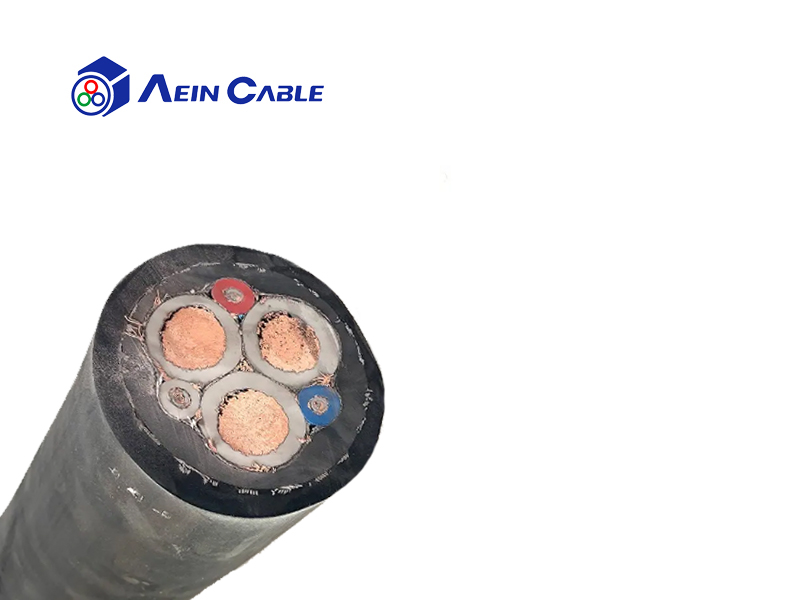

Product structure
Conductor: DIN VDE 0295 class 5 flexible stranded copper conductor.
Inner conductor layer: special rubber material, semi-conductive.
Insulation: Type 3Gl3 rubber.
Outer conductor layer: special rubber material, conductive and easy to strip.
Ground wire: tinned copper wire spirally wound.
Inner sheath: Type GM1 rubber.
Reinforcement: anti-torsion polyester braid, embedded between the sheaths
Outer sheath: Type 5GM5 rubber.
Rated voltage: 3.6/6KV
Standard: VDE 0250 Part 813
Product identification: Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model number specification voltage CE Meter scale
