Product introduction
-
01 Product application
This cable is used for the connection of mobile electrical equipment and can be used in underground mines, such as coal mining machines, especially for applications with high bending loads under low tensile stress.
-
02 Product characteristics
. Flame retardant in accordance with EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2 . Oil
resistant .UV
resistant . Abrasion and tear resistance, oil resistance, and royal oxygen resistance
-
03 Technical certification • Conform to RoHS •Complies with 2014/35/EU-Directive ("Low Voltage Directive") CE.

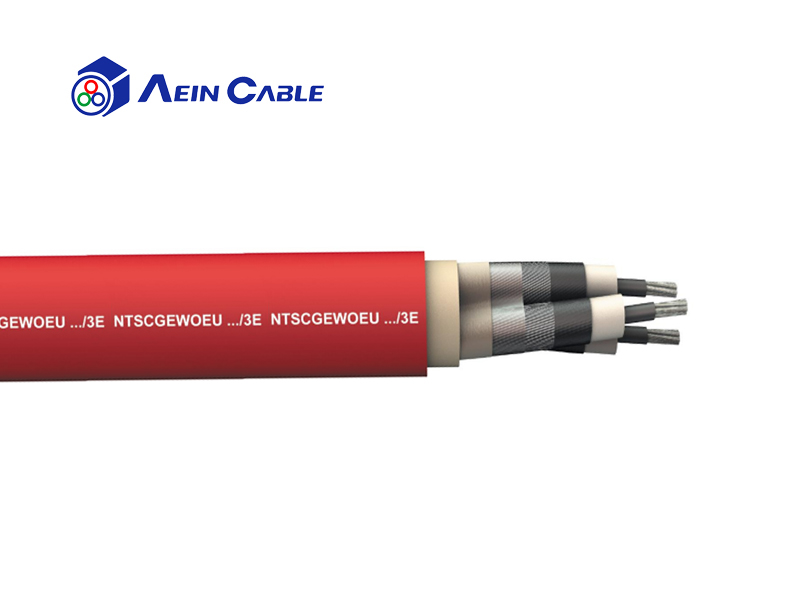

Product structure
System 1 (1.8/3kV or 3.6/6kV): Flexible stranded tinned copper conductor with heat-resistant 3GI3 rubber based on EPR, easily strippable outer semiconductive layer
System 2 (0.6/1kV): Flexible stranded tinned copper conductor with heat-resistant 3GI3 rubber based on EPR.
Ground wire: Tinned copper spirally wound.
Wire harness: Expandable or compressed copper/steel control and monitoring conductor, EPR insulation, optional optical fiber, outer layer covered with tinned copper wire and semiconductive rubber insulation.
Inner sheath: 2-layer design, semiconductive insulation + Type 5GM5 rubber.
Armor: Steel wire spirally wound, embedded in outer sheath, glass fiber braid to prevent sheath exchange.
Outer sheath: Type 5GM5 rubber, abrasion and tear resistant, oil-proof, flame retardant
Rated voltage: 1.8/3KV
Standard: VDE 0250 Part 813
Product identification: Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model number specification voltage CE Meter scale
