Product introduction
-

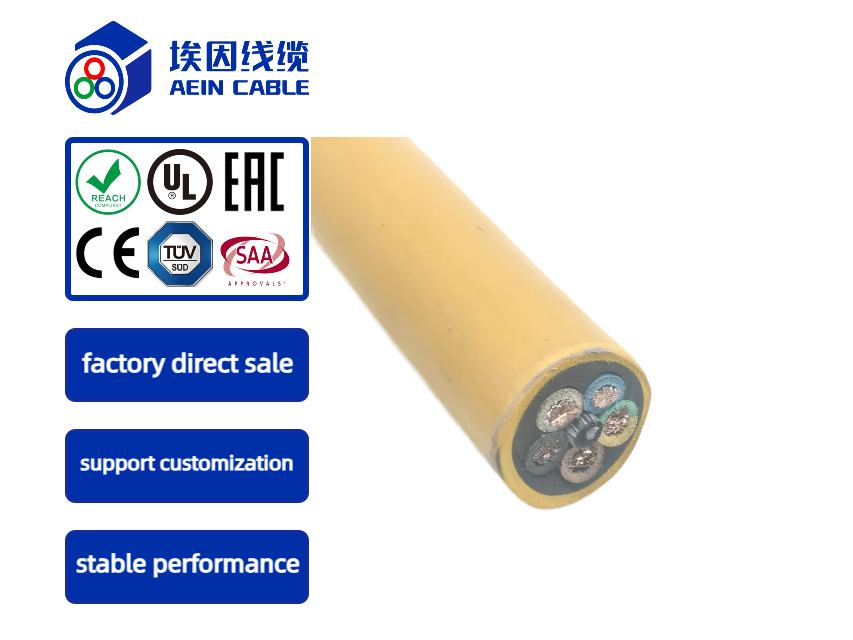

01 Product applicationThis kind of cable has extremely low water absorption. The BUFLEX SUB cable can be used in fresh water or seawater. This medium-voltage cable is used to supply power to excavators along the shore of large gravel or quarries. A pair of shielded wires are
placed in the gap to provide control signals; Two grounding wires are placed in the gaps on the other two sides.
-
02 Product characteristics · Flame retardancy complies with EN 60332-1-2: IEC 60332-1-2:
· Wear-resistant, tear-resistant, oil-proof and ozone-resistant·
Customization is acceptable for products with special structures, other sizes, core wires and sheath colors.
-
03 Technical certification • Comply with the RoHS standard
• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
Product structure
Conductor: Flexible bare copper wire, Grade 5 IEC60228
Reinforcing element: Polyarylamide
Conductor shielding: Semiconductive layer
Insulation :EPR ethylene propylene rubber IEC60502-2
Single shielded wire: Bare copper wire with semiconductive winding
Core wire identification: blue - white - red. Ground wire: yellowish green, or digital number
Inner sheath: Special thermoplastic compound
Shielding layer (2X2.5mm²): Flexible copper wire of grade 5 IEC60228, bare copper wire XLPE cross-linked polyethylene, special thermoplastic compound
Ground wire: Two wires, Grade 5 IEC60228,XLPE cross-linked polyethylene insulation
Outer sheath: Polyurethane
Color: Orange. Other colors as required
Fixed minimum bending radius :10xd
Small bending radius movement :18xd
The temperature rating is fixed :-30°C/+90°C
Temperature range :-15°C/+90°C
Flame retardant grade: IEC 60332-1
Product Identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CEMeter gauge
Product parameter
