Product introduction
-
01 Product application
This type of cable uses low-absorbent compounds and can be used in shallow water. It can be applied in gravel yards or quarries.
-
02 Product characteristics· Flame retardancy complies with EN 60332-1-2; IEC 60332-1-2;
· Wear-resistant, tear-resistant, oil-proof and ozone-resistant·
Customization is acceptable for products with special structures, other sizes, core wires and sheath colors.
-
03 Technical certification· Comply with RoHS standards
· Comply with the 2014/35/EU standard "Low Voltage Directive" CE.

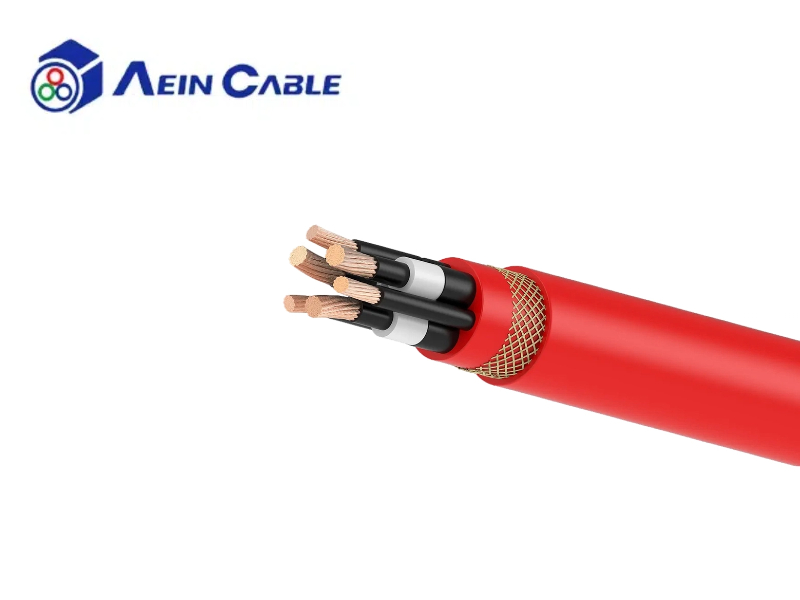

Product structure
Conductor: Flexible bare copper wire, Grade 5 IEC60228
Reinforcing element: Polyarylamide
Insulation :XLPE cross-linked polyethylene
Core wire identification: brown - black - gray. Ground wire: yellow-green crossed wire
Inner sheath: Special low water absorption mixture
Outer sheath: Polyurethane
Color: Orange. Other colors are available as required
Frontage voltage :0.6/1(1.2)kV
Fixed minimum bending radius :10xd
Small bending radius movement :18xd
The temperature rating is fixed :-30°C/+90°C
Temperature range :-15°C/+90°C
Flame retardant grade: IEC 60332-1
Product Identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE meter mark
