Product introduction
-
01 Product application MPRXCX 0.6/1 kV armoured power and control cables are used for wiring fixed installations where enhanced mechanical protection and electrical screening is required.The highly flexible MPRXCX range is recommended for installations and connections in narrow spaces where an optimal bending radius is required. The sectoral conductors of multicores cables provide further space and weight savings on the cable trays. Designed with halogen-free fire retardant materials, they provide optimum safety for people and maximal asset protection against all risks of fire.
-
02 Product characteristics Halogen free IEC 60754-1
Fire retardant: IEC 60332-3-22
Flame retardant: IEC 60332-1
Gases toxicity: No
-
03 Technical certification • Conform to RoHS
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

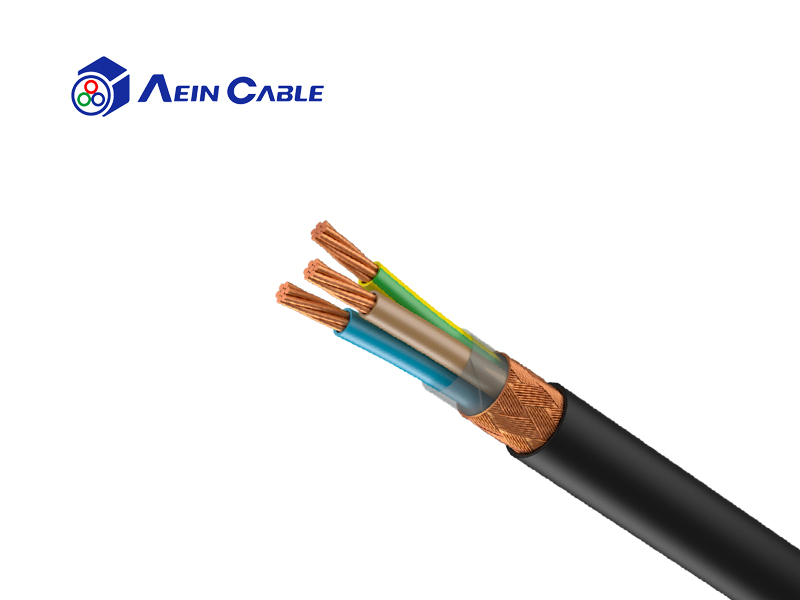

Product structure
Conductor material: Stranded bare copper, class 2 or flexible bare copper, class 5 (cross sections > 4 mm2)
Insulation: XLPE (cross-linked polyethylene)
Inner covering: (Filler, if necessary) Lapped
Armouring: Bare copper braid
Outer sheath: Polyolefin SHF1 (SHF2 on request)
Sheath colour: Black
Core Identification
1 core: black
2 cores: brown-blue
3 x: brown-black-grey
3G: brown-blue-green/yellow
4 x:
brown-black-grey-blue
4G: brown-black-grey-green/yellow
5 x: white with printed numbers
5G: brown-black-grey-blue-green/yellow
> 5 cores: nx: white with printed numbers
> 5 cores: nG: white with printed numbers + green/yellow core
Electro magnetic interference resistance: Yes
Max. conductor temperature in service: 90 °C
Operating temperature, range: -30 - 80 °C
