Product introduction
-
01 Product application
The cable can be laid on the upper, middle and lower layers of stucco concrete; Fixed installation indoors, outdoors or in concrete; For buildings or industrial buildings with dense personnel or valuables: can not be directly buried or installed in water;
It can be used in power stations, public institutions, hotels, airports, underground railway networks, hospitals, department stores, data processing, theatres, cinemas, schools and other places with fire hazards.
-
02 Product characteristics
halogen-free
Flame retardant; non-flammable
self-extinguish
Flameless propagation
Low smoke density
-
03 Technical certification · Comply with ROHS standards
·Compliance with 2014/35/EU- Code "Low Voltage Directive" CE

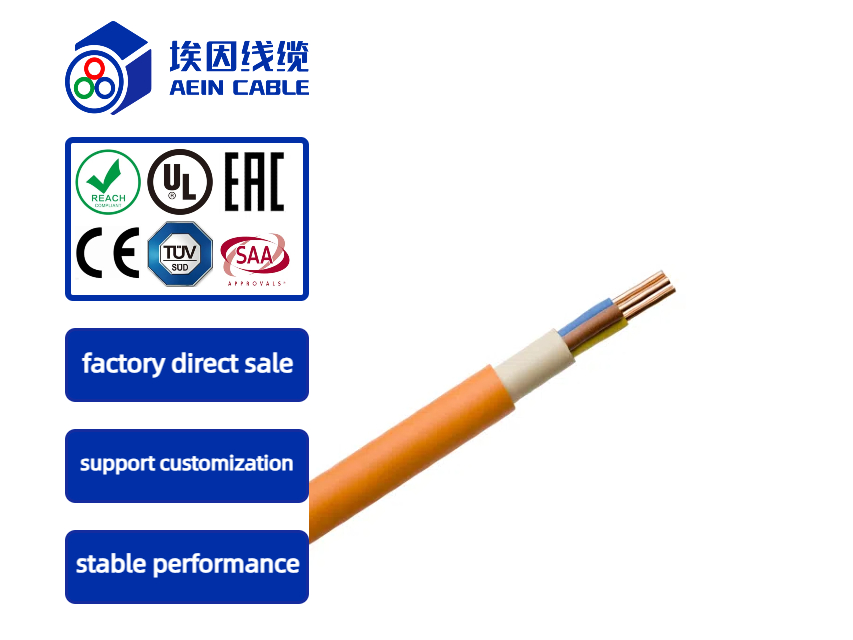

Product structure
Conductor material: bare copper wire
Fire protection layer: flame retardant mica tape
Insulation: Cross-linked polyethylene (XLPE)
Insulation refractory :FE180- 180 minutes of insulation integrity under the direct influence of flame
Insulation color: digital code /3 cores and above can be added yellow-green
Shielding layer: tinned copper wire braid
Outer sheath :LSZH
Jacket color: Orange/customizable
Rated voltage :0.6/1 kV
Test voltage :4000V
Small bending radius :Ø:15 x d
Temperature rating :-30°C/+90°C
Circuit Integrity: Available as E30 /E90- Ensures functional integrity for 30 minutes /90 minutes
Halogen-free: According to IEC 60754-1 standard
Smoke density: According to IEC 61034 standard
Flame retardant: According to IEC 60332-2 standard
Product identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE meter standard
