Product introduction
-
01 Product application

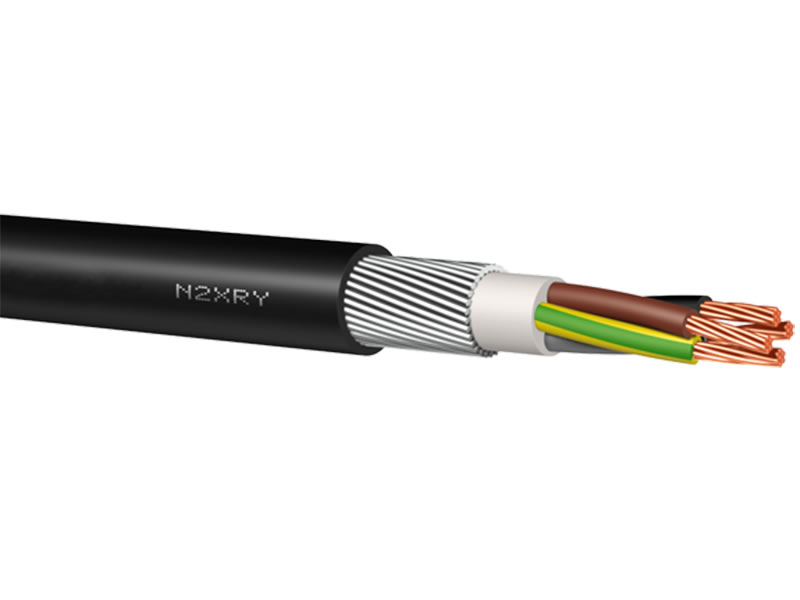

Steel wire armored multi-core PVC cable (SWA). Power and auxiliary control cables for power networks, underground, outdoor and indoor applications, and cable ducts.
-
02 Product characteristics
· Flame retardant in accordance with IEC 60332-1-2
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing
-
03 Technical certification
· Comply with RoHS standards
· Comply with Directive 2014/35/EU-Guideline (" Low Voltage Directive ")CE
· Comply with TUV certification
Product structure
Conductor material: bare copper wire
Conductor class: According to IEC 60228 cI.5 standard cI.2 Optional
Insulation :XLPE
Core identifier: two cores red and blue; three core red yellow green; Four core red yellow green blue; Five core red yellow green blue yellow/green
Stranding: stranding in layers
Outer sheath :PVC
Jacket color: black, RAL 9005 or grey RAL 7001
Rated voltage :0.6/1kV
Test voltage :3.5kV
Conductor resistance: According to IEC 60228 cI.5 standard
The rated temperature of the conductor is 90°C
When short-circuiting (5s or less) occurs, the conductor temperature does not exceed 250°C
Small bending radius fixed :7.5 x d
Small bending radius movement :15 x d
Temperature rating fixed :-15°C/+90 °C
Temperature rating shift :-5°C/+90°C
Flame retardant rating :IEC 60332-1-2
Standard :IEC6050-1, BS 5467
Product identification: Aein bei Ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
