Product introduction
-
01 Product application
These cables are used to power low-voltage installation systems.
They are suitable for indoor and outdoor installation, cable pipelines, underground, power plants and switching stations, local energy distribution, industrial plants and other places
where there is no risk of mechanical damage.
-
02 Product characteristics
·
Black type sheath: can be used for UV resistance
· Flame retardant
-
03 Technical certification
·Comply with RoHS standards
·Compliance with 2014/35/EU- Guideline ("Low Voltage Directive")CE

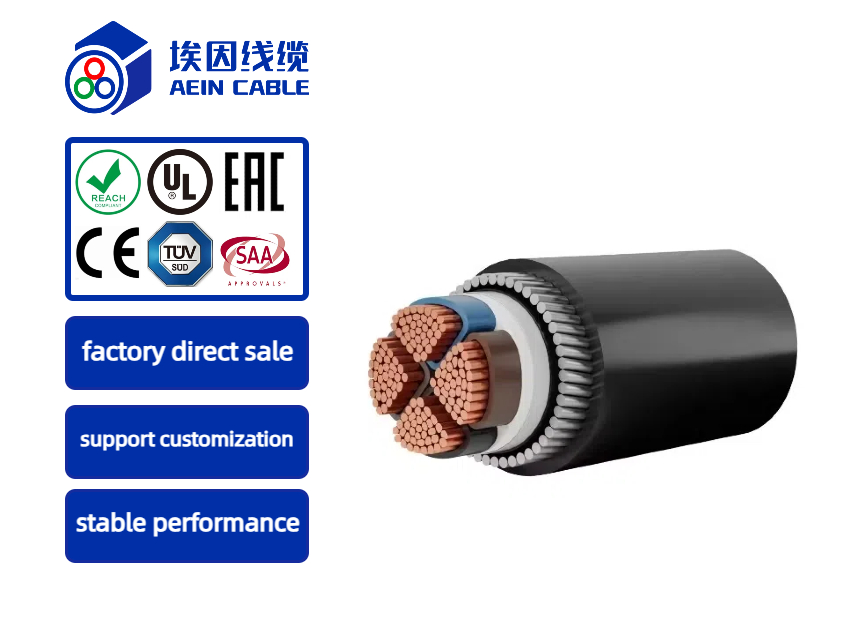

Product structure
Conductor material: bare copper wire
Conductor class: According to IEC 60228 cI.5 standard
Insulation: Cross-linked polyethylene (XLPE) or polyvinyl (PVC)
Core identifier: Black core with white number, GNYE without through
Stranding: stranding in layers
Armouring: wire braided armouring
Outer sheath :PVC
Jacket color: black, RAL9005 or grey RAL7001
Rated voltage :0.6/1 kV
Test voltage :4 kV
Conductor resistance: According to IEC 60228 cI.5 standard
Capacitance: core/core about 120 nF/km; Core/shield about 160 nF/km
Small bending radius :7.5 x d
Small bending radius :15 x d
Temperature rating fixed :-15°C/+90°C
Temperature rating shift :-5°C/+90°C
Flame retardant rating :IEC 60332-1-2
Standard :HD 603-3G IEC60502
Product identification :Aein beike SHANGHAI AEIN WIRE& CABLE CO.LTD Model Specification Voltage CE meter standard
