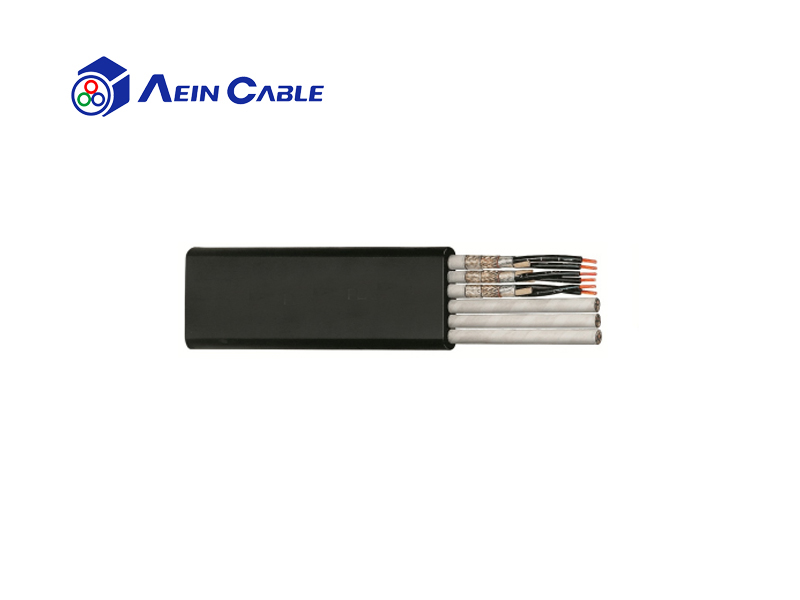

NGFLGOEU Low Voltage Flat Cables for Festoon Application

Flexible low voltage power and control cable, for use on festoon systems and for connecting moveable parts of machine tools, material handling equipment, etc., associated with high mechanical stresses and frequent bending during operation and for bending in one plane only.

inquiry

Product details

Product introduction

01 Product application

Flexible low voltage power and control cable, for use on festoon systems and for　connecting moveable parts of machine tools, material handling equipment, etc., associated with high mechanical stresses and frequent bending during operation and for bending in one plane only.
02 Product characteristics

Resistance to oil

Weather resistance
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor Eletrolytic copper, not tinned:

- up to 25 mm²: extremely finely stranded

- above 35 mm²: finely stranded

Insulation: special PVC

Basic material EPR, Rubber compound

Core identification Up to 5 cores, colored: green/yellow (or black for version...-O) black, blue, brown, grey;

For more than 5 cores: black with white colored numbers

Individual screen Braid screen made of tinned copper wires, transfer impedance optimized at 30 MHz.

Surface covered: approx. 60% for shielded cores, approx. 80% for twisted and shielded pairs.

Core arrangement Parallel, for more than 12 cores: parallel bundles

Outer sheath Basic material CR, Rubber compound

Colour: black

Rated voltage 300/500V (600V)

Max. permissible operating voltage AC 0.7/1.2 kV

Max. permissible operating voltage DC 0.9/1.8 kV

AC Test Voltage 2.5 kV (5 Min.)

Max. permissible temperature at conductor 90 °C

Max. short circuit temperature of the conductor 250 °C

Ambient temperature for fixed installation min -50 °C ; max +80 °C

Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
