Product introduction
-
01 Product application HO5BQ-F CE certified polyurethane halogen-free control cable, used for coordination, halogen-free connection cables in electrical facilities and hand-held power tools, for fixed and mobile installations, without clear cable paths, without tensile stress.
Suitable for use in dry, damp or wet rooms. Outdoor use within the temperature range, not laid underground.
-
02 Product characteristics • Increased resistance to acids, alkalis, solvents, hydrolytic agents, lubricants, etc.
• Increased resistance to abrasion and microorganisms
• UV-resistant PUR outer sheath • Halogen-free
-
03 Technical certification • Conform to RoHS
• Conform to 2014/35/EU-Guideline(" Low voltage Directive ")CE • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

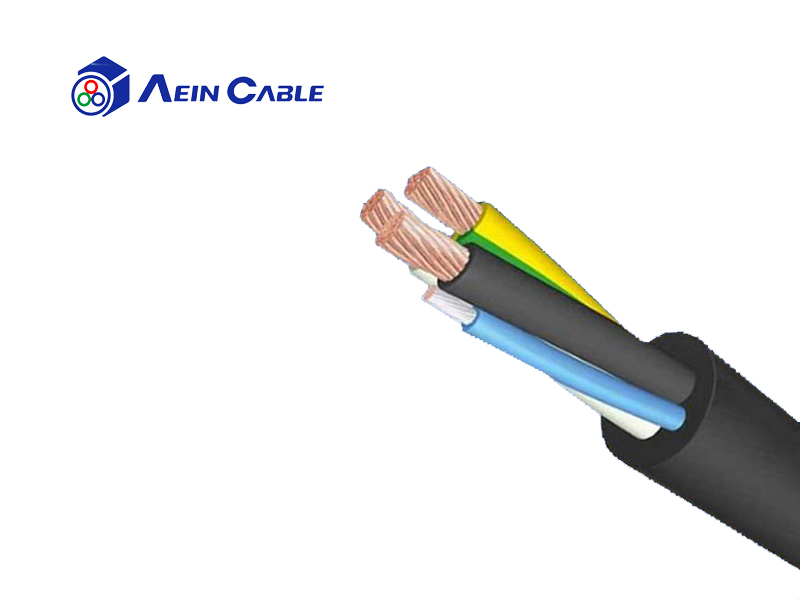

Product structure
Conductor material: Bare copper stranded wire
Conductor class: In accordance with IEC 60228 cl. 5 standard
Insulation:Rubber compound
Core identification: 5 cores or less: Complies with DIN VDE0293-308 standard; GNYE from 3 cores and above
Twisting: Layered stranding
Outer sheath: PUR
Sheath color: Orange (optional)
Rated voltage:Uo/U: 300/500 V
Test voltage:2 kV
Conductor resistance: In accordance with IEC 60228 cl. 5 standard
Insulation resistance Small 20 MΩ xkm
Min. bending radius fixed:4 x d
Min. bending radius moved:12.5 x d
Operat. temp. fixed min/max:-50 °C / +80 °C
Operat. temp. moved min/max:-40°C / +80 °C
Burning behavior:IEC 60332-1-2
Standard: Comply with HD22.10.S1, DIN VDE 0282 T10
Product identification:Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
