Product introduction
-
01 Product application
It is suitable for buildings with higher fire safety requirements due to high concentration of people, high value material and cultural assets (skyscrapers, hospitals, shopping, tunnels, museums, cinemas, theatres). Cables can be used for power supply
or control (lighting, elevators, fire fighting equipment, pumps). They can be used for fixtures in buildings. In the case of outdoor applications, the cable should be protected against ultraviolet radiation and external factors.
-
02 Product characteristics
No halogen
corrosive and toxic gases
Flame retardant
self-extinguish
Flameless propagation
Non-spontaneous combustion
-
03 Technical certification ·Conform to RoHS standard
·CE certification = Products comply with EC Low Voltage Directive 2006/95/EG.

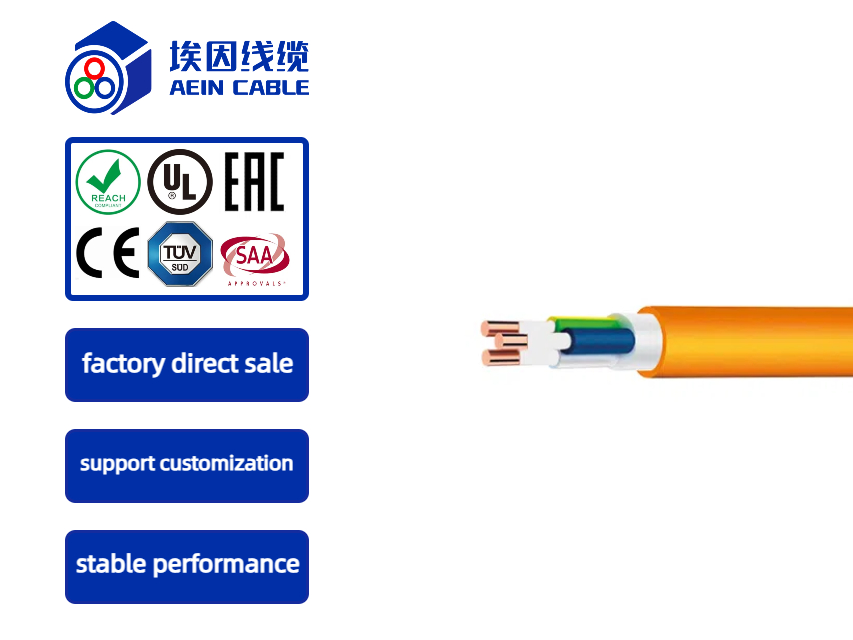

Product structure
Conductor material: bare copper wire
Fire protection layer: flame retardant mica tape
Insulation: cross-linked halogen-free compounds
Insulation refractory :FE180- 180 minutes of insulation integrity under the direct influence of flame
Insulation color: digital coding core and above can be added yellow-green
Inner sheath: halogen-free
Outer sheath: halogen-free polymer
Jacket color: Orange/customizable
Rated voltage :0.6/1kV
Test voltage :4kV
Small bending radius :Ø:15xd
Temperature rating :-30°C/+90 °C
Circuit Integrity: Available as E30 /E90- Ensures functional integrity for 30 minutes /90 minutes
Halogen-free: According to IEC 60754-1 standard
Smoke density: According to IEC 61034 standard
Flame retardant: According to IEC 60332-2 standard
Product ID :Aein beke SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE meter standard
