NSGAFOEU/NSHXAFOE Medium Voltage Single Core Cables

These cables are designed for fixed installation in track-bound vehicles and buses, in pipes and closed installation ducts, as well as for the connection of mobile parts. 3 kV-rated cables can be used in low-voltage switch boards to ensure inherently short-circuit and earth-fault proof connections.

inquiry

Product details

Product introduction

01 Product application

These cables are designed for fixed installation in track-bound vehicles and buses, in pipes and closed installation ducts, as well as for the connection of mobile parts. 3 kV-rated cables can be used in low-voltage switch boards to ensure inherently short-circuit and earth-fault proof connections.
02 Product characteristics

Oil resistant

Flame retardant

Halogen-free

low smoke
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

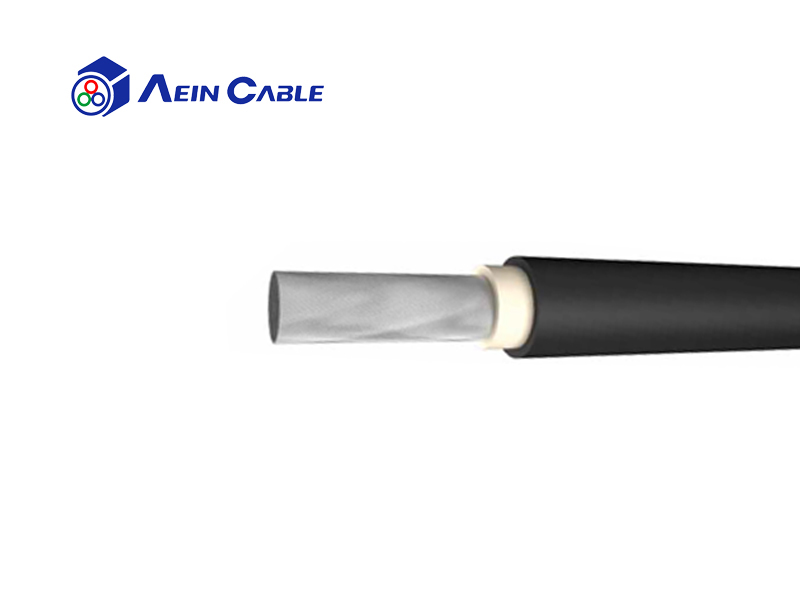

Product structure

Conductors: Stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228.

Inner Conductor Layer(for 6kV): Semi-conducting layer.

Insulation: EPR compound type 3GI3/3GJ3.

Optional Screen (for NSGAFCMOEU/NSHXAFCMOE): Tinned copper wires.

Outer Sheath : Chlorinated rubber type 5GM3, oil resistant and flame retardant (for NSGAFOEU/NSGAFCMOEU). Halogen-free polymer compound HM3, oil-resistant, flame retardant, low smoke (for NSHXAFOE/NSHXAFOE).

Keywords: CE certified cable
