Product introduction
-
01 Product application
As power cable for polip or peel grap applications and reeling cable for winding operation with tensile stress and/or torsional stress and for connection and control cable in lifting devices, hoisting plants and transporting machines for heavy mecnical load and as drum and drag cable in dry, damp or wet rooms and wet industrial conditions.
-
02 Product characteristics600 / 1000 V
-
03 Technical certification
•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE •We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.

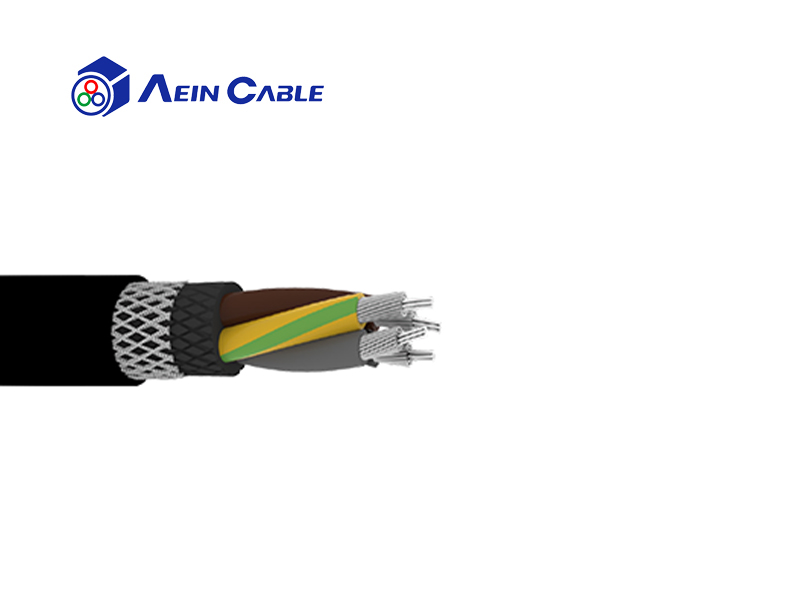

Product structure
CONDUCTOR: Electrolytic annealed, class 5 stranded tinned copper wires with steel supporting elements in the center of conductor
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: cross-linked elastomeric compound
INNER SHEATH: cross-linked elastomeric compound
REINFORCEMENT: Antitorsion textile braided embeded sheath
OUTER SHEATH: cross-linked elastomeric compound
COLOR: Black
RATED VOLTAGE: 600 / 1000 V (U0/U)
AC TEST VOLTAGE: 3,5 kV
OPERATING TEMPETATURE
IN FLEXING USE: -25°C to +80°C
IN FIXED USE: -40°C to +80°C
MAX. CONDUCTOR OPERATING TEMP.: 90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C
MIN. INSTALLATION TEMP.: -15°C
