Product introduction
-
01 Product application Used for fixed laying on rolling stock and buses, as well as dry indoor, pipe and closed aqueducts. Suitable for connecting flexible units.
-
02 Product characteristics • The following low voltage facilities are listed as short circuit and leakage protection connections
• Halogen free: protects personnel and fixed assets by reducing smoke density and corrosive gases during fire • Flame retardant coincidence IEC 60332-1-2
-
03 Technical certification • Conform to RoHS
• Halogen-free
• UV resistance
• Ozone resistance

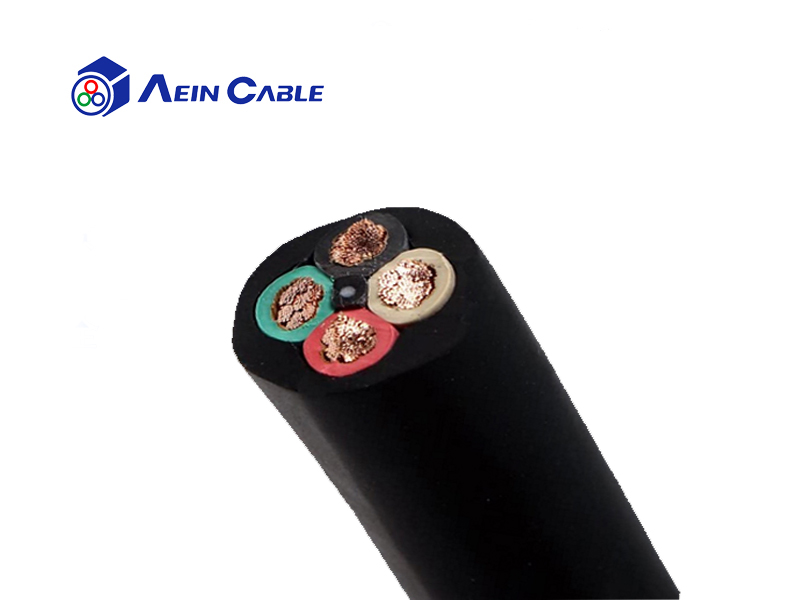

Structural parameter
Conductor material: Tinned copper stranded wire
Conductor class: In accordance with DIN VDE 0295 5 Class, refer to IEC 60228 5 class
Core insulation:3 GI3 Type B halogen-free rubber mixture
Outer sheathing material:HM3 Type halogen-free rubber mixture
Color of outer sheath:Black
Rated voltage:1.8/3 kV
Test voltage:6 kV
Min. bending radius fixed:6 XD
Min. bending radius moved:10 XD
Operat. temp. fixed min/max: -40 °C / +90 °C
Operat. temp. moved min/max:-30 °C / +90 °C
Halogen-free:Conform to DIN VDE 0472
Smoke density:Conform to IEC 61034
Flame retardant:IEC60332-1-2
Oil resistance: Meet EN 60811-2-1
Standard:Conform to DIN VDE 0250-606
Product identification Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
Product parameter
