Product introduction
-
01 Product application

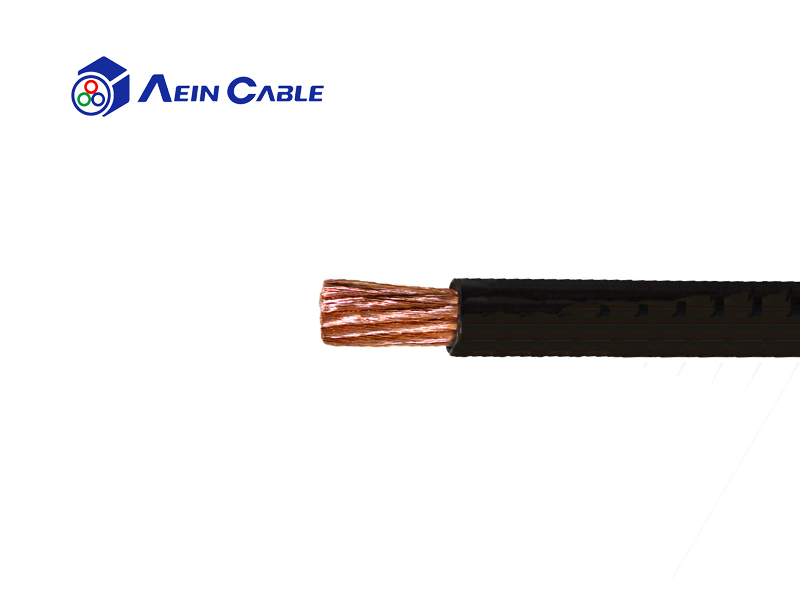

PV1-F heat-resistant single-core photovoltaic cable is specially designed for the connection of solar cells and photovoltaic modules. It can be used for fixed installation and mobile applications without tensile load. In order to ensure extraordinary
safety and quality, the cable has obtained CE certification. This helps to provide high reliability of PV- system. The extremely durable outer sheath has good weather resistance and ultraviolet resistance. In case of fire, corrosive gas will not be generated,
and the density of smoke generated is low. Conductor short-circuit temperature is high.
-
02 Product characteristics
• High temperature resistance of 120℃
• There is no corrosive gas during fire, and the smoke density is low.
• Hydrolysis resistance and ultraviolet resistance
-
03 Technical certification • RoHS Compliant
• Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor: DIN VDE 0295 standard class 5 soft stranded tinned copper conductor.
Insulation: Cross-linked halogen-free synthetic rubber core insulation.
Outer sheath: Cross-linked halogen-free synthetic rubber sheath
Rated voltage: 600V
Test Voltage: 25KV
Core identification: in accordance with DIN VDE 0293 Part 308 Standard
Temperature Rating Fixed: -40°C / +120°C
Burning behavor: IEC 60332-1-2
Marking: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model Specification Voltage CE Meter Mark
