Product introduction
-
01 Product application
The cables are used for the connection of mobile machinery under extremely high mechanical loads, especially suitable for mining environments, can also be used via guide pulleys (cable cars) or as drum cables (LHD), can withstand extreme bending forces,
high tensile strength, impact and crush loads.
-
02 Product characteristics
• Flame retardancy according to EN 60332-1-2; IEC 60332-1-2;
• Abrasion and tear resistance, oil and ozone resistance
• For special structure, other size, core wire and sheath color products can be customized.
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

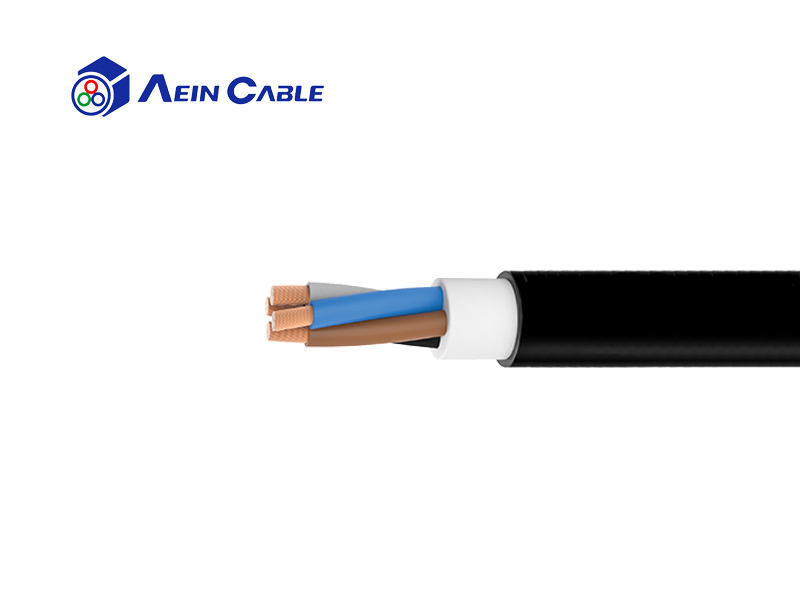

Product structure
Conductor: DIN VDE 0295 standard class 6 soft stranded tinned copper conductor.
Conductor type: IEC 60228 class 5 stranded tinned copper conductor or DIN VDE 0295 standard class 5 flexible stranded tinned copper conductor.
Insulation: EPR.
Core (optional): special conductor, tinned copper braid and galvanized steel wire braid.
Inner Sheath: Type GM1 Rubber.
Armor/Ground Conductor: Combined copper-steel braid for both concentric ground and tensile armor.
Outer sheath: Chlorinated rubber PCP/CR type 5GM5, wear-resistant, tear-resistant, oil-proof, and flame-retardant.
Rated voltage: 0.6/1kV
Test cable: 2500V
Conductor resistance: in accordance with IEC 60228 standard
Temperature class Fixed: -40°C / +90°C
Temperature Rating Mobile: -15°C / +90°C
Flammability rating: IEC 60332-1-2
Standard: VDE 0250 Part 813
Marking: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model Specification Voltage CE Meter Mark
