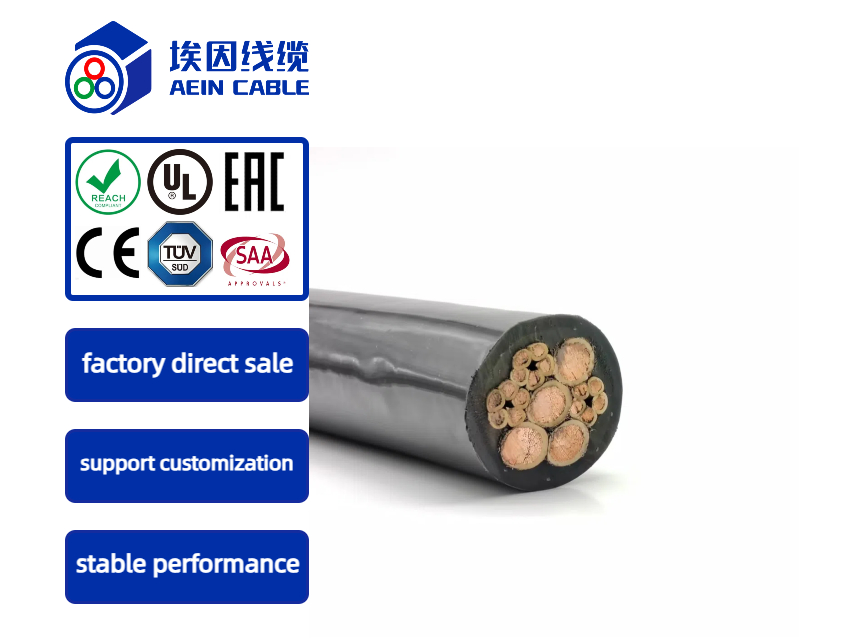

Product introduction
-
01 Product application
Halogen-free and chcrone-free polyurethane drum motors are used for control and power supply. It is used in applications such as spring-controlled drums, drag chains and other drums.
-
02 Product characteristicsIt is resistant to heavy load wear, scratches, torsion, oil, moisture and ozone
Resistant to ultraviolet rays
Customization is acceptable for products with special structures, other sizes, core wires and sheath colors.
-
03 Technical certification· Comply with RoHS standards
· Comply with the 2014/35/EU standard "Low Voltage Directive" CE.
Product structure
Conductor material: Soft bare copper wire, grade 5
Conductor type :IEC 60228 standard Class 5 annealed copper conductor
Core wire insulation: Special TPE-E, thermoplastic polyester elastomer
Reinforcement: Anti-twist polyester braided.
Outer sheath: Polyurethane
Rated voltage :300/500V
Test voltage :3.0 kV
Conductor resistance: Complies with IEC 60228 standard
Fixed minimum bending radius :6xd
Small bending radius movement :8xd
Tensile stress of the conductor: Static :15 N/mm; Dynamic: 30 N/mm ²
The temperature rating is fixed :-50°C/+80°C
Temperature range :-40°C/+80°C
Product Identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE meter mark
