Product introduction
-

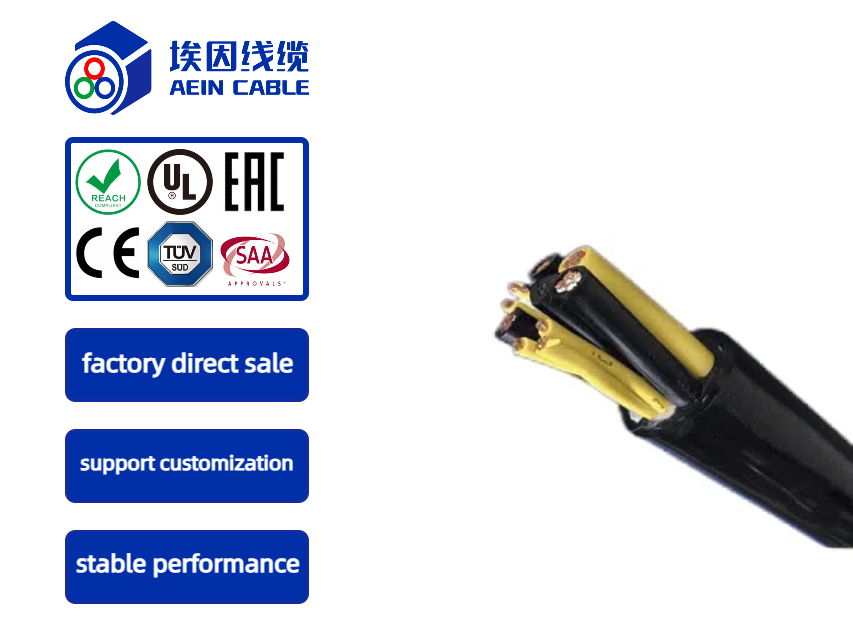

01 Product application Halogen-free lift control cable with textile supporting element for medium mechanical stress. Suitable for dry and humid rooms.
-
02 Product characteristics •notable protection to people and property value
•free from lacquer damaging substances and silicone (during production)
•halogen-free
-
03 Technical certification •conform to RoHS
•conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor material: bare copper wire
Conductor type : Conforms to DIN VDE 0295 Class 6 or IEC 60228 cl.6
Core insulation: Special thermoplastic
Core identification: According to VDE 0293 Black with white numbers and GNG
Twist: Core twisted
Outer sheath: PUR
Outer sheath color: RAL 9005 black
Rated voltage: Uo/U: 300V/500
Test voltage: 3000V
Bending radius: 12xd
Fixed temperature rating :-50°C/+90°C
Temperature rating shift :-30°C/+90°C
Combustion behavior: Self-extinguishing and flame retardant in accordance with IEC 60332-2-2
Product identification :Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage meter standard
Product parameter
