Product introduction
-
01 Product application
For transmission of analogue and digital signals in instrument and control systems, not allowed for direct connection to low impedance source, e.g. the public mains electricity supply.
-
02 Product characteristics
Flame retardant
UV resistant
Oil resistant
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

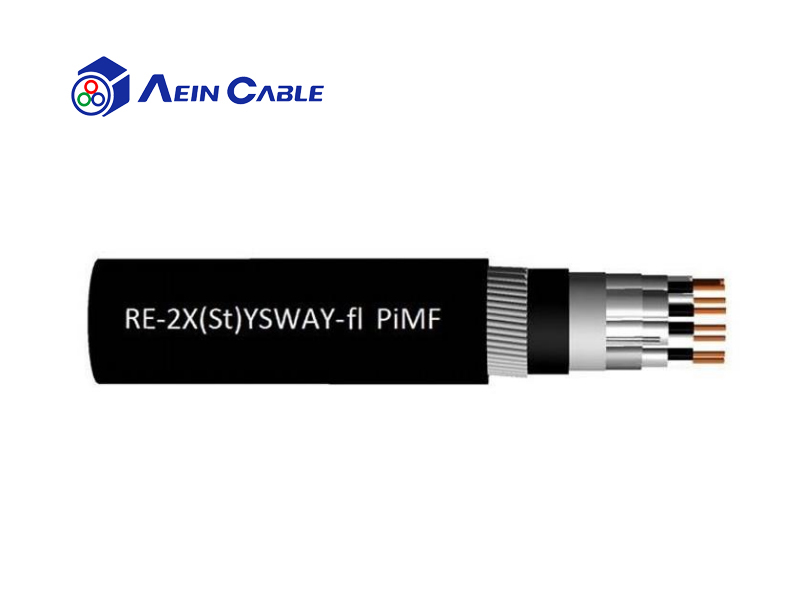

Product structure
Conductor : Plain annealed stranded copper sizes 0.5mm², 0.75mm², 1.0mm², 1.3mm², 1.5mm²
Insulation : XLPE
Individual shield : 24μm Aluminium / PETP tape over stranded tinned copper drain wire 0.5mm2 wrapped in Polyester tape
Collective screen : 24μm Aluminium / PETP tape over stranded tinned copper drain wire 0.5mm2 wrapped in polyester tape
Inner sheath : Polyvinyl chloride PVC
Armouring : Galvanised steel wire armour
Outer sheath : Polyvinyl chloride PVC
Operating voltage : 300 V
Colour Code
Single pair : Black/white
Multi pair : Black/white numbered
Single triple : Black/white/red
Multi triple : Black/white/red numbered
Outer Sheath Colours
Available colours : Black or blue*
*other colours available on request
Installation recommendations
Min. Bending Radius : 10xD
Max. Conductor Operating Temperature : 90°C
