Product introduction
-
01 Product application
These cables are used for transmission of analogue and digital signals in instrumentation and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroleum plants, etc... Instrumentation cables are not allowed
for direct connection to a low impedance source, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. The armour above the inner sheath protects the cable from mechanical shocks. These
cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet locations; on racks, trays, in conduits.
-
02 Product characteristics
Rated voltage: 300 V.
Test voltage: Urms core-core: 1500 V;
Urms core-screen: 1500 V.
Temperature range: operation: - 30° C ~ + 70° C;
installation: - 5° C ~ + 50° C.
Min. bending radius: 10 x D.
Insulation resistance: min. 100 MΩ/km.
Capacitance unbalanced: (1 kHz) : max. 500 pF/500 m.
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

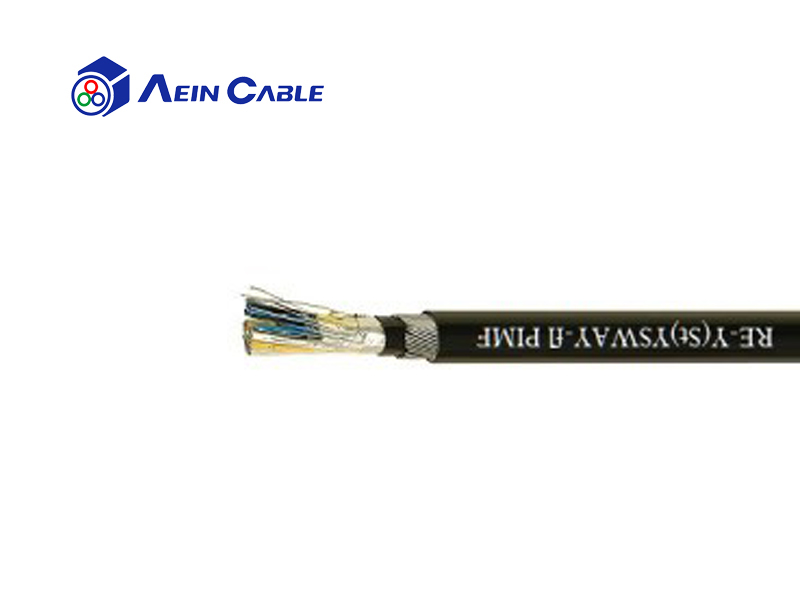

Product structure
Conductor: plain copper wire, stranded.
Insulation: PVC compound, 70° C.
PIMF Construction : polyester tape above the pair, AL-PES tape over solid tinned copper drain wire, 0,60 mm.
Separator: polyester tape.
Screen: AL-PES tape over stranded tinned copper drain wire 0,50 mm².
Inner/outer sheath: PVC compound, 70° C.
Armour: galvanized round steel wire.
Sheath colour: black or blue.
