Product introduction
-
01 Product application

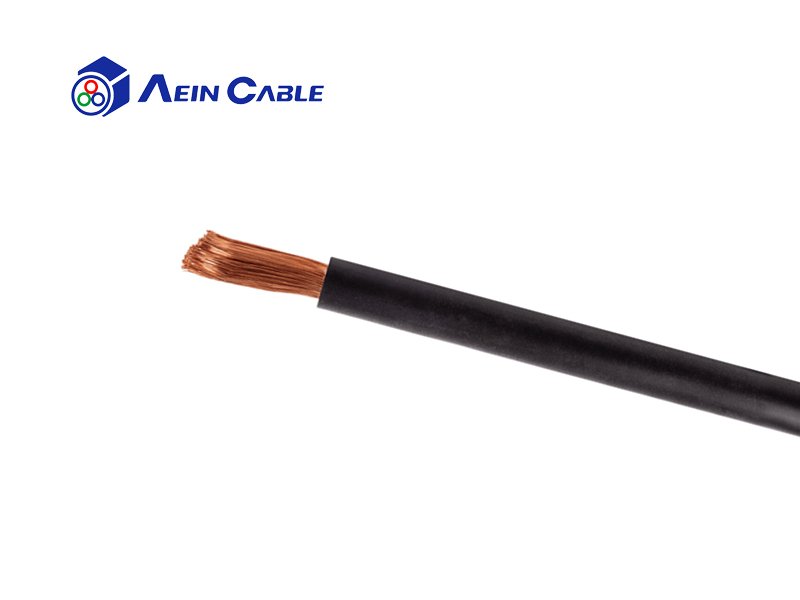

RHW - RHW cable is a wire insulated by XLPE. RHW cables can withstand heat up to 75°C and are waterproof. RHW cable is optional for use in underground and wet locations and is generally suitable for lighting, power systems and general wiring applications.
replaceable CUL certified RW75 model product. RHW-2 - With the same inherent qualities as RHW, the NEC lists RHW-2 as capable of withstanding heat up to 90°C. RHW-2 cable is suitable for direct burial in wet or dry conditions and is generally suitable
for lighting, power systems and general wiring applications. Can replace CUL certified RW90 model products.
-
02 Product characteristics
-40°C cold bending and -40°C cold impact
Low smoke and zero halogen
Resistant to sunlight
-
03 Technical certification • CSA C22.2 No. 38• Conform to RoHS
• We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.
Product structure
Conductor material: Bare Annealed Copper
Conductor type: UL44 compliant with ASTM B3, B8 and B33 or NMX-J-008-ANCE requirements
Insulation: XLPE (Cross-Linked Polyethylene)
Core identification: optional
Rated voltage: 600V, 1000V, 2000V
Conductor resistance:UL1581 ASTM class C
Min. bending radius fixed:7.5x d
Min. bending radius moved:15x d
Operat. temp. fixed min/max:RHW:-40°C/75°C;RHW-2:-40°C/90°C
Flame retardant grade self-extinguishing and flame retardant conforms to UL1581 VW-1; CSA C22.2 No.2556-15 FT1, FT2; IEC 60332-1-2 standard
Approvals: UL
