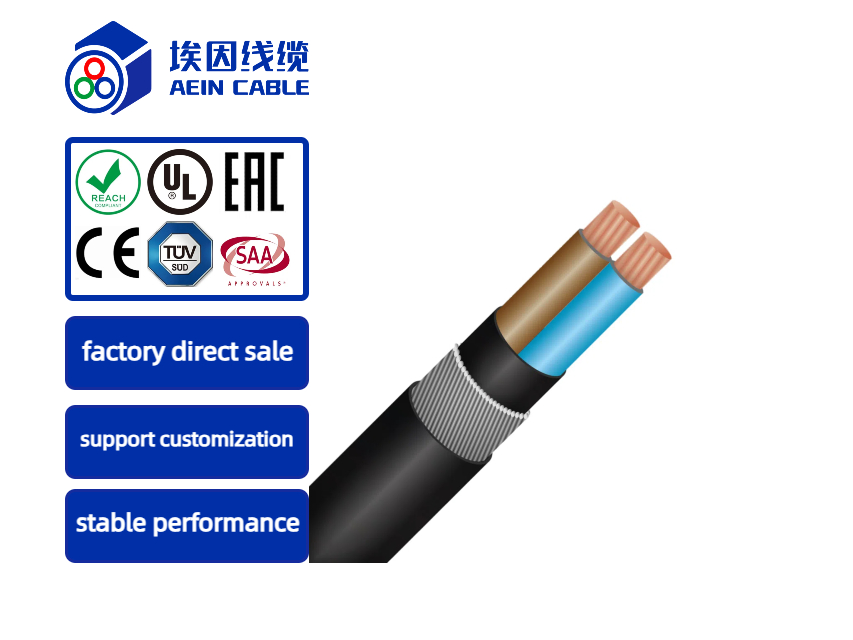

RZ1MZ1-K (AS) Spanish standard industrial cable polyolefin armored Zero halogen cable

An armored power cable used in a fixed installation to transmit and distribute electrical energy. Suitable for indoor and outdoor installation, air support, piping or direct embedding (with good mechanical protection and rodent protection). Suitable for installation in public places according to ITC-BT 28, in places where there is a risk of fire or explosion according to ITC-BT29 (ATEX zone), and in all places where safe fire behaviour is normally required.

inquiry

Product details

Product introduction

01 Product application

The servo controller is connected with the motor cable Suitable for static and occasional flexible use Suitable for indoor and outdoor installation, air support, piping or direct burial
02 Product characteristics
Low capacitance Flammability:UL/CSA: VW-1, FT1IEC/EN:60332-1-2
Technical certification03
· Comply with RoHS
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing

Product structure

Conductor material: fine wire, bare copper conductor

Conductor grade: According to EN60228 standard

Core wire insulation :XLPE

Stranded: concentric insulated wire

Shielding: Galvanized steel wire bundle wrapped shielding, 90%

Outer sheath: halogen-free polyolefin

Jacket color: Color can be specified

Rated voltage :600/1000V

Test voltage :3500V

Conductor resistance :UL1581 ASTM Class C

Small bending radius fixed :6x d

Small bending radius movement :15x d

Operating temperature fixed minimum/maximum value :-40°C/+90°C

Temperature class Shift Small/large value :-5°C/+70°C；

Keywords: RZ1MZ1-K(AS) cable
