Product introduction
-
01 Product applicationElectric drive systems in automation engineering, with controllers connecting cables to motors, in power chains or moving machine parts, for assembling and picking up machinery, especially in wet areas of machine tools and transmission lines.
-
02 Product characteristics ·DSL large transmission length :100m
Flammability :UL/CSA:VW-1, FT1, IEC/EN:60332-1-2
· halogen-free materials
· Low capacitance design
· Oil resistance
-
03 Technical certification · Comply with RoHS standards
· Compliance with Directive 2014/35/EU (" Low Voltage Directive ")CE · Customization is acceptable for special construction, other sizes, core and jacket color products.

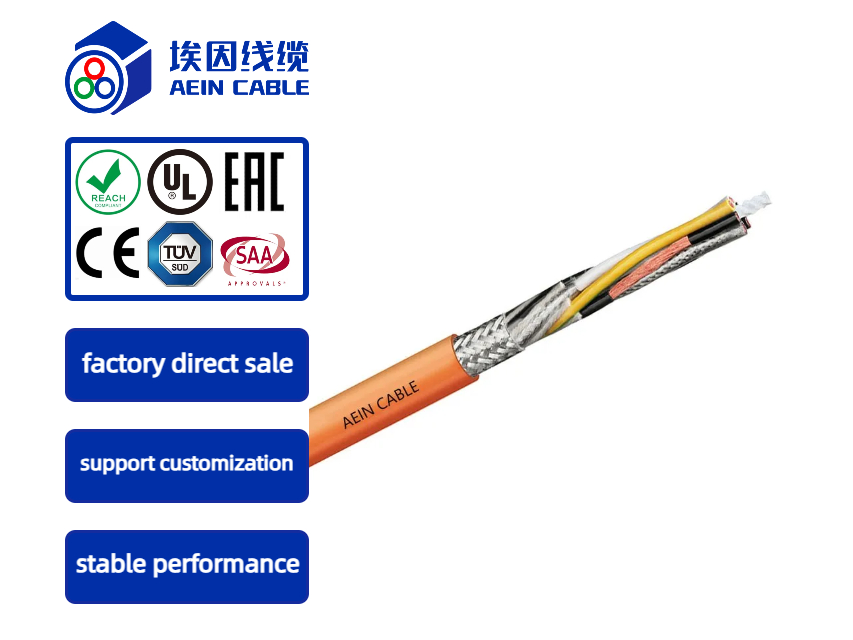

Product structure
Conductor material: ultra-fine wire bare copper conductor (power core and control pair) and 19-wire tinned copper conductor (data pair)
Conductor class: According to UL758 standard, STM B3 or ASTM B33 standard, DIN VDE 0295 Class 5 conductor or IEC 602285 class conductors
Core insulation: Polypropylene (PP)
Core identification :<20AWG; 5 core and below using color separation, in line with n,DIN 47100, more than 5 core multi-core cable using core wire color separation, white ink dot distinction; ≧20AWG: Color separation is adopted for 5 cores and below,
including yellow/green line, in line with n.DIN 47100, multi-core cables with more than 5 cores are black core, and white ink numbered (customized if there are special requirements)
Stranding: Personalized design according to the project: power core without or with a pair of stranding together shield control pair and a pair of DSL data pair non-woven wrap
Braid: tinned copper braid
Outer sheath :PUR
Jacket color: Orange (RAL 2003)
Rated voltage :600V
Test voltage :1000V
Conductor resistance :UL1581 ASTM Class C
Small bending radius fixed :15xd
Small bending radius movement :7.5xd
Operating temperature fixed minimum/maximum value :-40°C/+90°C
Temperature class Shift Min/Max: -40°C/+90°C:
