Product introduction
-
01 Product applicationUL/CSA certified for frequency converter connection and DNC motor control, copper wire shielding enables the cable to meet the requirements of electromagnetic compatibility and ensures the operation of the motor without interference. The 4+2 structure
is commonly used for power and feedback cables. Connecting the power core and shielded control core, the cable is suitable for stationary and occasionally mobile applications. Suitable for dry, wet and wet indoor use.
-
02 Product characteristics Cable resistant to specific types of oil, UV resistance
With UV-resistant, halogen-free outer sheath flammability :UL&CUL:VW-1, EN:60332-1-2
G= Contains yellow and green ground protection wires
Through the best electromagnetic compatibility
shielding, the frequency converter can operate normally without external electromagnetic interference
The low capacitance of the cable makes the connecting cable between the motor and the inverter longer
Customization is acceptable for special
construction, other sizes, core and jacket color products
-
03 Technical certification · Comply with RoHS standards
· Compliance with Directive 2014/35/EU (" Low Voltage Directive ")CE · Comply with UL/CSA standards

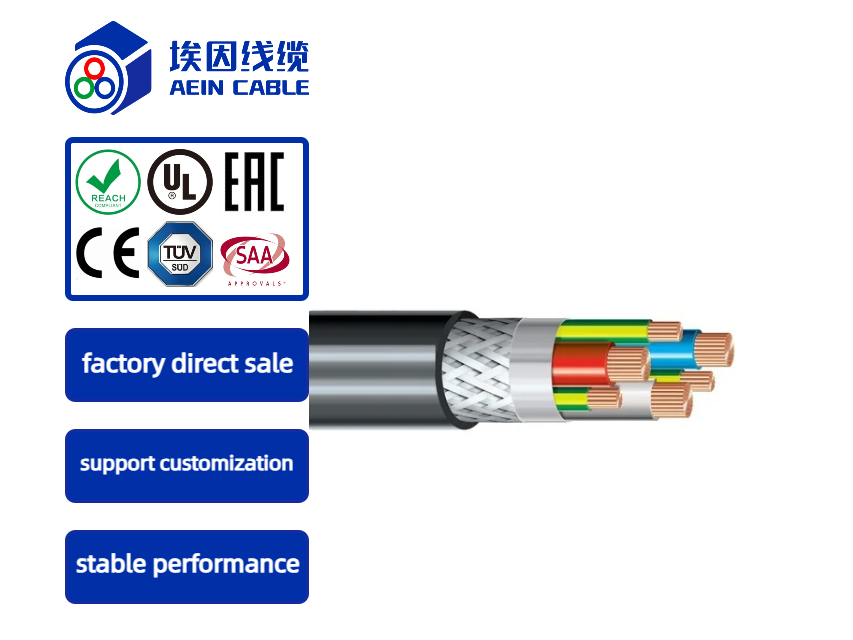

Product structure
Conductor material: bare copper wire
Conductor grade: According to IEC60228 cl.5 standard
Core wire insulation :PVC/PE/PP
Core identification: conforming to DIN VDE 0293 (GNYE color core or black with continuous white numbering and with a green and yellow protective ground conductor 4+2 power core 0.75mm²
-50mm²: bare copper wire fine pattern, The PVC core wires are insulated. The core wires are black
with continuous white numbers and green and yellow protection ground wires. Control core
Line 0.34mm²
-1.5mm²: bare copper wire, PVC core wire insulation, Bi wire color is black with continuous
white number skein composite pair, each pair with aluminum foil tinned copper wire shield.)
Shielding :≥85% tinned copper braid shielding
Outer sheath material :PVC
Jacket color: Black RAL 9005:
Rated voltage :Uo/U:0.6/1kV:UL/CSA 600V or 1000V
Test voltage :3.5kV
Conductor resistance: according to IEC 60228 cl.5 or cl.6
Insulation resistance :20 MΩ/km
Bending radius (fixed): Ø:5 x d below 12mm; Under 20 mm Ø:7.5 x d; >20 mm Ø:10 x d
Bending radius (movement):Ø: 7.5-10x d;
Temperature rating (fixed):-40 °C/+80 °C
Temperature rating (moving):-15°C/+70°C
Compliance: According to DIN VDE 0285 UL: Style 20886 CSA: AWM I A/ B.II A/B FT1
Product identification:Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD. Model Specification Voltage CE meter standard
Product parameter
