Product introduction
-
01 Product application
Si-C-Si cable with shielding is suitable for oven, motor and airplane construction, steel plant, hot rolling plant, drying room, solarium, sauna equipment, areas with high temperature and extreme temperature difference and areas requiring electromagnetic
compatibility.
-
02 Product characteristics
High temperature resistance of 180℃
No flame conduction during fire, complete insulation and low smoke density.
Silica gel is resistant to ozone, oxygen, seawater and weather.
Hydrolysis resistance and ultraviolet resistance
When the temperature is above+100℃ and there is no air, the mechanical properties of silica gel wires will be reduced in advance, so adequate ventilation should be ensured.
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

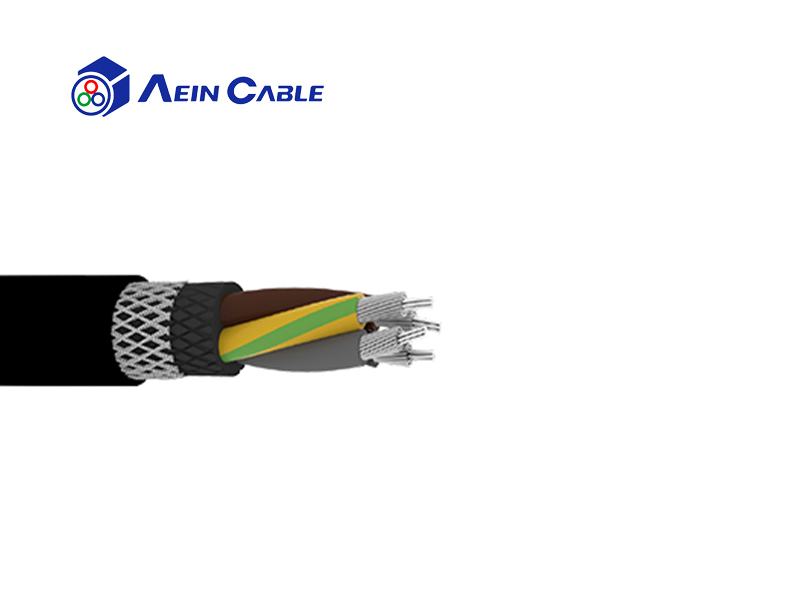

Product structure
Conductor: DIN VDE 0295 standard class 5 soft stranded tinned copper conductor.
Conductor resistance: in accordance with IEC 60228 standard
Insulation: Silicone Rubber
Core identification: Colorful cores according to DIN VDE 0293-308.
Stranding: Strand in layers
Shielding: Tinned copper braid
Outer sheath: Silicone Rubber
Rated voltage: Uo/U: 300/500 V
Test voltage: 2000V
Conductor resistance: in accordance with IEC 60228 Class 5 at+20 C.
Minimum fixed bending radius: 7.5 x d
Minimum moving bending radius: 15 x d
Temperature class Fixed: -60°C / +180°C
Burning behaviour: IEC 60332-1-2
Standard: VDE 0250 Part 812
Marking: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model Specification Voltage CE Meter Mark
