Product introduction
-
01 Product application

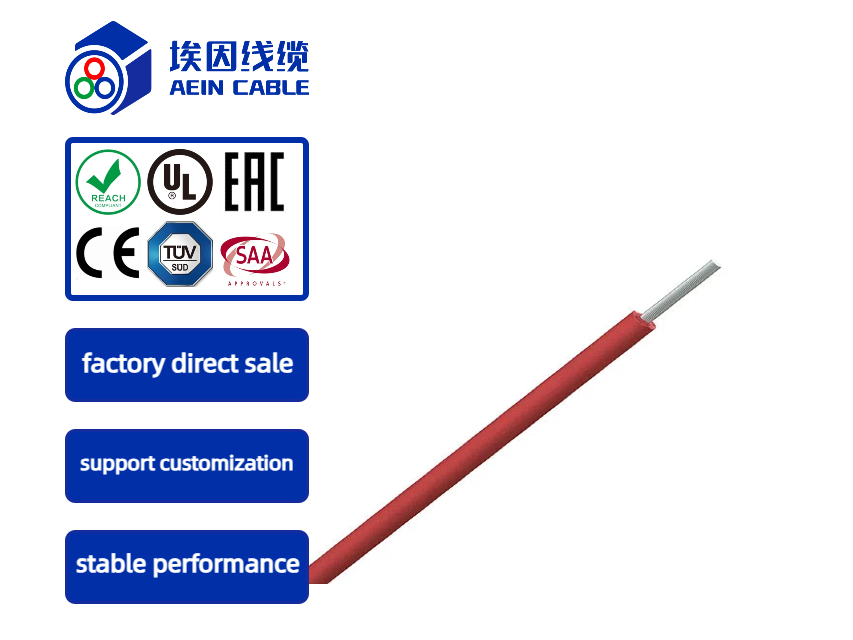

Halogen-free SiF silicone single core is particularly resistant to high temperatures and is particularly suitable for use in high operating temperature environmental conditions, as well as in environments with large temperature fluctuations.
-
02 Product characteristics
· High temperature 180℃
· No flame conduction during fire, complete insulation, low smoke density
· Silicone is resistant to ozone, oxygen, seawater and weather
· Resistant to hydrolysis and UV
· From +100℃ above and without air, the
mechanical properties of the silicone wire will be reduced in advance, and adequate ventilation should be ensured
-
03 Technical certification · Comply with RoHs standards
· Compliance with 2014/35/EU- Guideline( "Low Voltage Directive")CE
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing
Product structure
Conductor material: tinned copper stranded wire
Conductor class: According to IEC 60228 c1.5 standard
Insulation: silicone
Core identification: According to DIN VDE 0293-308 color core
Rated voltage :Uo/U: 300/500 V
Test voltage :2 KV
Conductor resistance: meets IEC 60228 Class 5 at +20°C
Insulation resistance: 20 MΩ xkm
Small fixed bending radius :7.5 x d
Small moving bending radius :15 x d
Operating temperature fixed minimum/maximum value :-60°C/+180°C
Halogen-free: compliant with IEC 60754-1
Corrosivity: compliant with IEC 60754-2
Flame retardant grade: self-extinguishing and flame retardant in accordance with IEC60332-1-2
Product Identification Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE
