Product introduction
-
01 Product application This product is mainly used for handheld power tools, washing machines, vibrators, lamps, therapeutic instruments, medical instruments, office equipment, etc. It can also be used in harsh environments. Such as outdoor lighting, power tools, construction
sites, etc.
-
02 Product characteristics . UL certification.
. Flame retardant in accordance with VW-1
. High flexibility, waterproof
-
03 Technical certification •RoHS compliant
•UL certified
•UL62/CSA-C22.2, UL1581 compliant

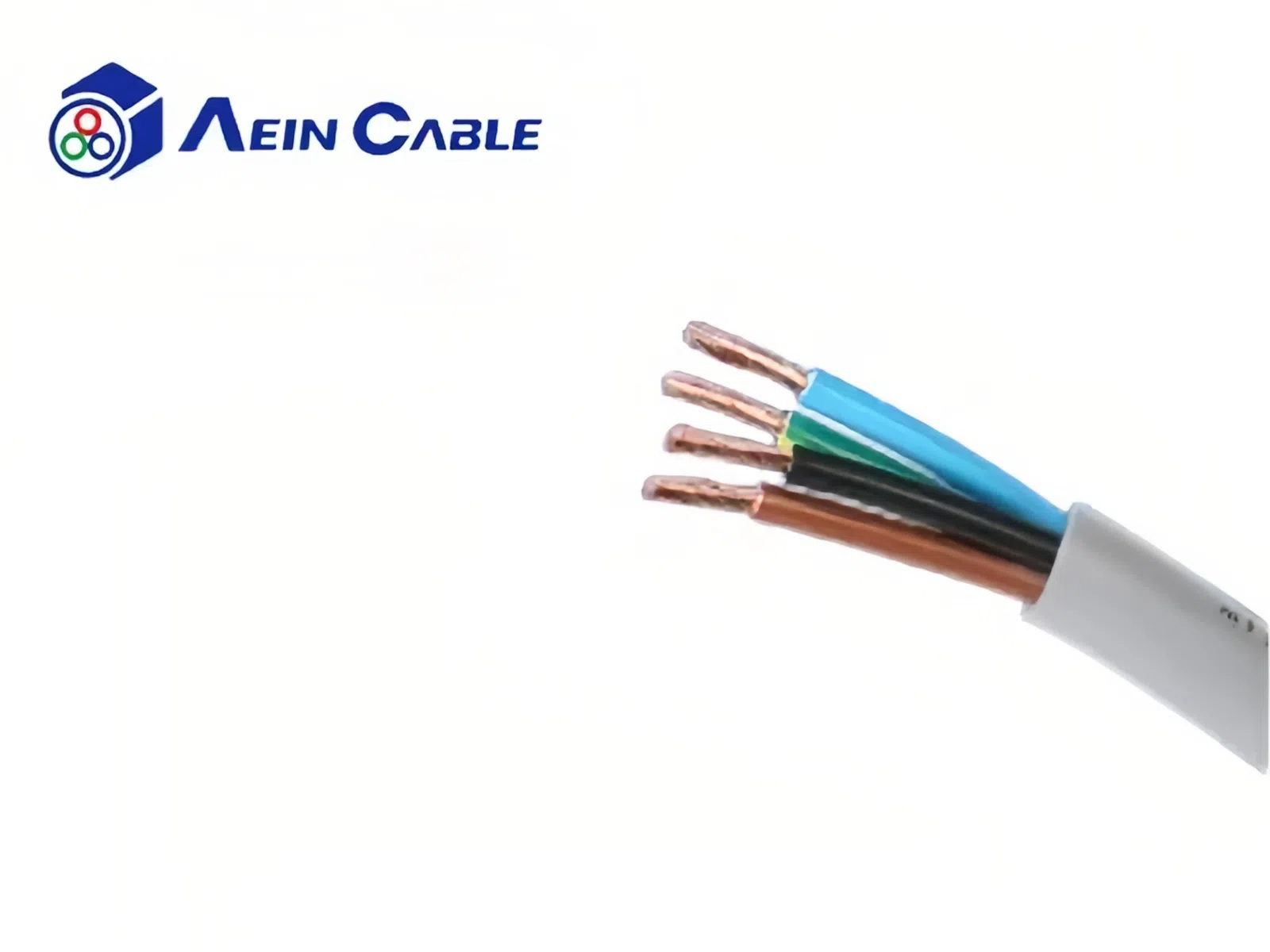

Product structure
Conductor material: flexible stranded copper conductor
Conductor grade: in accordance with UL62 standard
Core insulation: special PVC
Core identification: black core with white numbers, with or without GNYE
Twisting: insulated cores are twisted into cables with optimal pitch
Outer sheath: special PVC
Outer sheath color: black RAL9005 or gray RAL7001 (optional)
Rated voltage: 300V
Test voltage: 2.5 kV
Bending radius: 7.5 x d
Temperature grade: -40 °C / +105 °C
Flame retardant grade: self-extinguishing, in accordance with UL VW-1 standard
Standard: UL62
Product identification: Aein bei ke E503806 (UL) Specification *×**AWG(**mm²) Temperature Voltage c (UL) Model *×**mm²(**AWG) Temperature Voltage VW-1
