Special cables for garbage cranes

Special cables for garbage cranes

Garbage hoisting cables are suitable for use in garbage treatment plants, Marine sewage removal vessels, construction grab equipment, mine excavation, construction sites and other places. Equipment applications such as garbage cranes, grab buckets, bucket wheel machines, stacker-reclaimers, electric loaders, tunnel boring machines, cranes, gantry cranes, and heavy machinery drums/reels have been well applied in mobile equipment, directly replacing imported special cables. The materials selected all comply with environmental protection, halogen-free flame retardancy, and self-extinguishing characteristics.

inquiry
  • Product details
Product introduction
  • 01 Product application

    It is applicable to garbage treatment plants, Marine sewage removal vessels, construction grab equipment, mine excavation, construction sites and other places. The equipment applications such as garbage cranes, grab buckets, wheel turbines, stacker-reclaimers, electric loaders, roadheaders, cranes, gantry cranes, and heavy machinery drums/reels have been well applied in mobile equipment, directly replacing imported special cables. The materials selected all comply with environmental protection, halogen-free flame retardancy, and self-extinguishing characteristics.

  • 02 Product characteristics·  Wear-resistant · Resistant to acid and alkali corrosion (crack resistance)
    · Resistance·  Anti-aging
  • 03 Technical certification·  Comply with RoHS standards ·  Comply with the 2014/35/EU standard "Low Voltage Directive" CE.

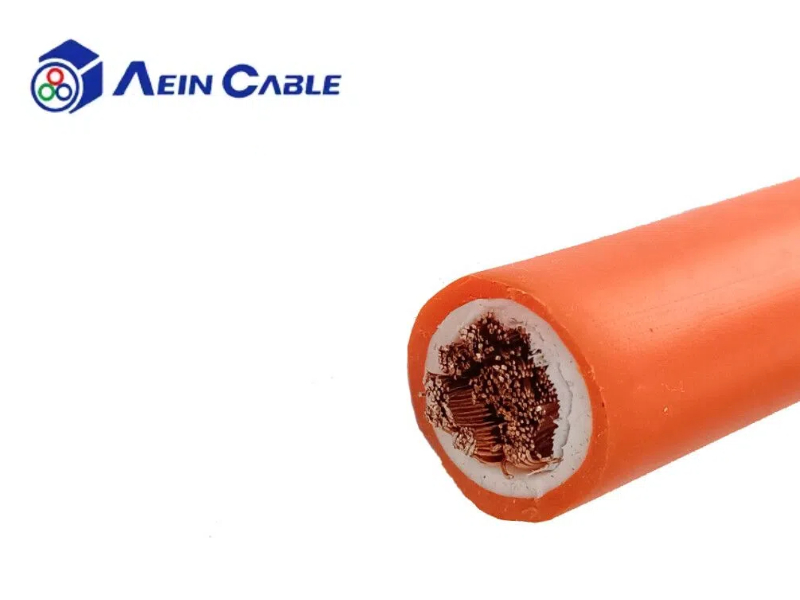

Product structure

Conductor: Multi-strand precisely twisted oxygen-free copper wire conforming to VDEO295 CLASS 5 standard

Insulation: Special elastomer insulation

Cabling: Short pitch twisting in groups, with tensile elements filled on the sides

Inner protective layer: Wear-resistant, oil-resistant nitrile /PUR inner protective layer

Reinforcement: Aramid braided reinforcement layer (torsional Kevlar braided)/ steel wire is optional

Outer sheath: Wear-resistant and oil-resistant polyurethane (PUR) sheath

Rated voltage :600/1000V

Test voltage :3500V/5min

Minimum bending radius: Fixed installation :5xD(outer diameter of the cable) Mobile installation :10xD(cable outer diameter)

Maximum moving speed :180m/min

Fixed installation temperature rating :-40℃ to +90℃

Temperature grade mobile laying :-30℃ to +90℃

Maximum tensile force :20N/mm²

Flame retardancy: Complies with IEC 60332

Product Identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage Meter Mark

Product parameter
