THHN/THWN, 600V, Type TC Power Cable

THHN/PVC, type TC Power Cable is used to supply power to motors, or for connection to other power devices in industrial settings. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC Power Cable is listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This cable may be used at temperatures not to exceed 75°C in wet locations and 90°C in dry locations.

inquiry

Product details

Product introduction

01 Product application

THHN/PVC, type TC Power Cable is used to supply power to motors, or for connection to other power devices in industrial settings. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC Power Cable is listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This cable may be used at temperatures not to exceed 75°C in wet locations and 90°C in dry locations.
02 Product characteristics

Heat, moisture and sunlight resistant
03 Technical certificationRoHS Compliant
Comply with UL1277 standard

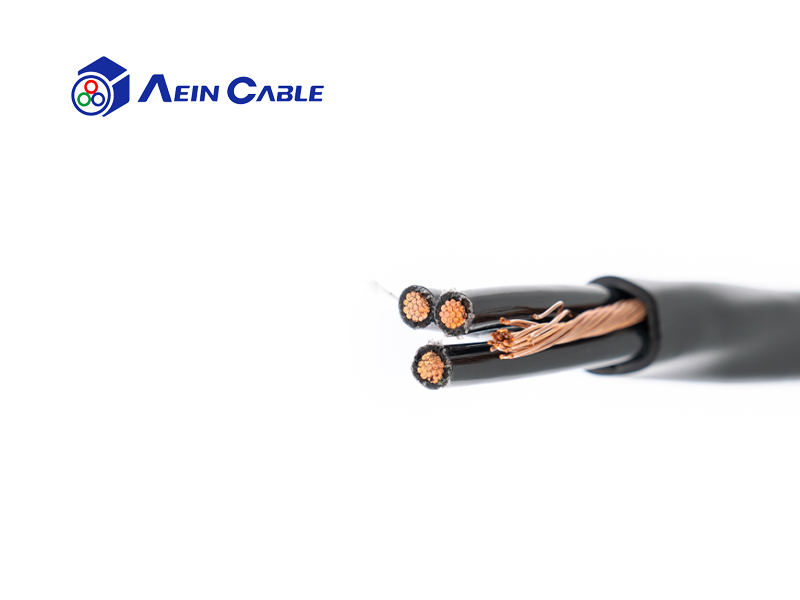

Product structure

Conductor: Soft annealed bare copper, Class B stranding

Insulation: Polyvinyl chloride (PVC) insulation over with a nylon (polyamide) jacket applied

Ground Wire: Soft annealed bare copper, Class B stranding

Assembly: Three or more conductors will be cabled round with fillers and a nylon rip cord is put under the jacket for ease of stripping

Jacket: Heat, moisture and sunlight resistant PVC(LSOH is available upon request)

Color: Upon request

Keywords: European UL certification
