Product introduction
-
01 Product application
Armored power cables for transmission and distribution of electrical energy in fixed installations, suitable for indoor and outdoor installation, air supports, ducts or direct burial (with good mechanical protection and rodent protection). Suitable for
installation in public places according to ITC-BT28, in places with risk of fire or explosion (ATEX areas) according to ITC-BT29, and in all places where safe fire prevention behavior is generally required.
-
02 Product characteristics
Low capacitance Flammability: UL/CSA:VW-1, FT1 IEC/EN:60332-1-2
-
03 Technical certification
· Comply with RoHS standards
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing

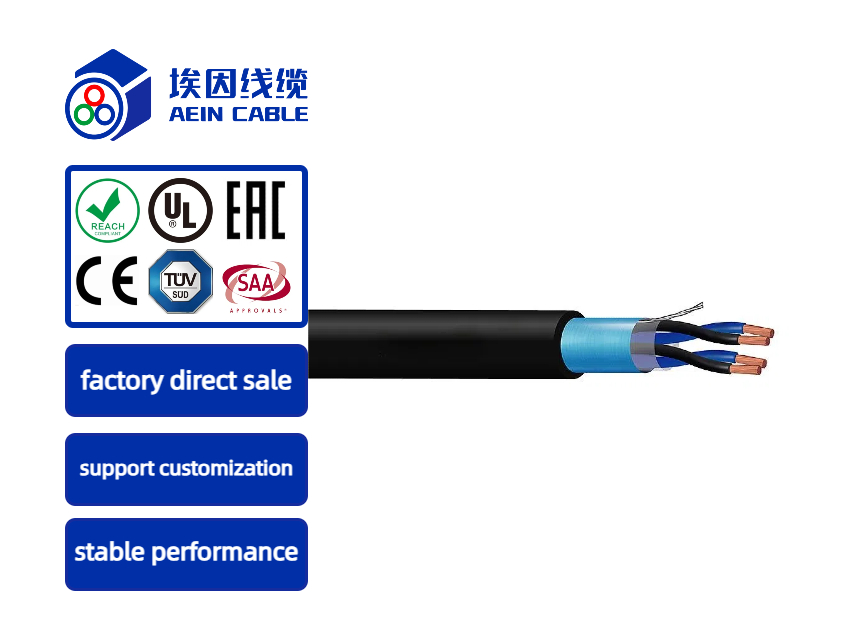

Product structure
Conductor material: fine wire, bare copper conductor
Conductor grade: conforming to EN60228 standard
Core wire insulation : XLPE
Stranded: concentric insulated wire
Shielding :0.10 mm thick copper tape, IEC-60502, overlap >20%
Outer sheath: halogen-free polyolefin
Rated voltage :600/1000V
Test voltage :3500V
Conductor resistance :UL1581 ASTM Class C
Small bending radius fixed :6 x d
Small bending radius movement :15 x d
Operating temperature fixed minimum/maximum value :-40°C/+90°C
Temperature class shift small/large value: -5°C/+70°C;
